DLSB150 LED 12 C/EW 830 DALI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
147,62 €
EAN: 4052075152265
MPN: 815711263001
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DLSB150 LED 12 C/EW 830 DALI |
| Brand | Performance in Lighting |
| Categories |
Recessed lights
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 80-89 |
| Height/depth | 100 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 13 W |
Packing details
| Packing level 1 | 4052075152265, 4052075152265 |
Other Technical data
| Protection class | I |
| Outer diameter | 152 mm |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Surface protection | Powder coating |
| Voltage type | AC/DC |
| With movement sensor | No |
| Suitable for lamp power | 12 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 5 |
| Housing material | Steel |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic matt/satinized |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.75 mm² |
| Surface brushed | No |
| Nominal current | 500 |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | Yes |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 10 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 23.3 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 96.4 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95.5 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 92.8 % |
| Dimming DALI-2 | Yes |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Built-in diameter | 140 mm |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.89 |
Downloads
Description

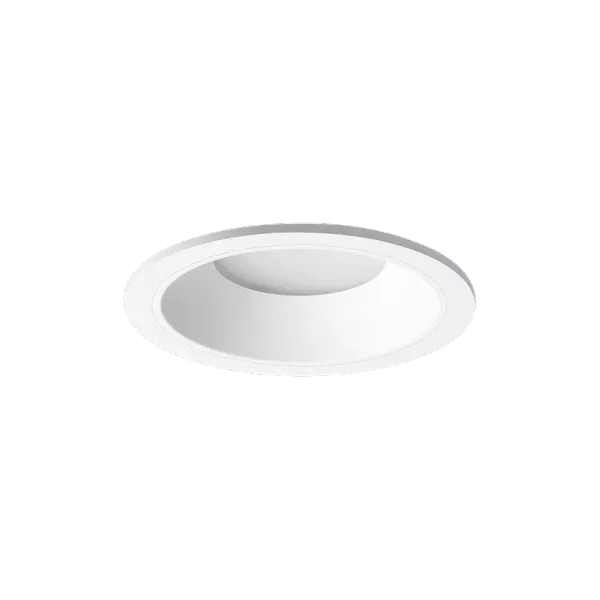

Rond led inbouw-downlight voor binnenshuis, bestaande uit: Een universele component van spuitgiet-aluminium voert alle functies uit: LED-koellichaam, ring, bevestiging aan plafond en verbinding met voedingsgroep. Lichtdichte basis. Geschikt voor plafonddiktes van 1-25 mm. Gesatineerde inbouwdiffuser voor een optimale en zeer hoge gelijkmatige lichtverdeling. Modulaire witte reflector geperst met ABS en vastgemaakt aan de LED-module voor een neutrale lichtweerkaatsing. Hoogwaardig Thermomanagement door middel van een aluminium koellichaam met FAST technologie (Flexible Air Stream Technology). RA-waarde > 80. Kleurtolerantie volgens MacAdam = 3 SDCM. Ook leverbaar in dim push button. Inclusief driver. DALI regelbaar. Beschermingsklasse IP54 (voor lichtuitstralings oppervlak voor installatie in gesloten plafonds).
