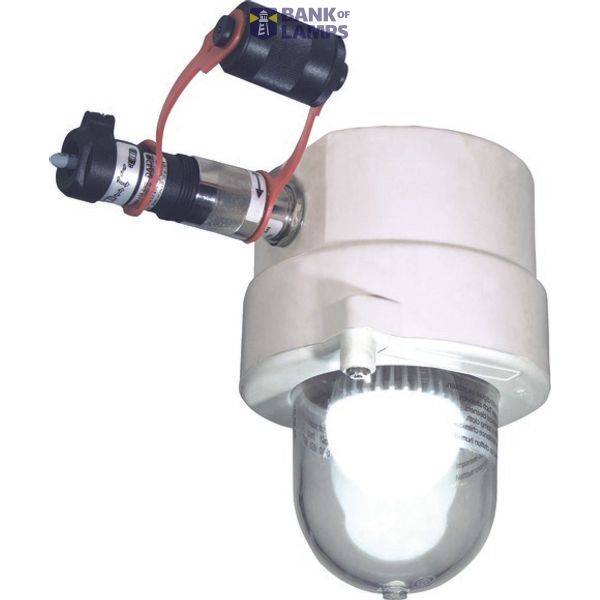

DKLK23 LED TRANSPARENCY W. LAMP
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DKLK23 LED TRANSPARENCY W. LAMP |
| Brand | EATON |
| ETIM | EC000981 |
| Width | 356 mm |
| Colour rendering index CRI | 70-79 |
| Length | 356 mm |
| Height/depth | 76 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000-6500 K |
| Max. system power | 6 W |
| Rated luminous flux according to IEC 62722-2-1 | 185 lm |
Packing details
| Packing level 1 | 4251510794132 |
Other Technical data
| Mounting method | Surface mounting |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Voltage type | AC/DC |
| Power supply system | Central |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for labelling type | Other |
| Type of indicator | Single-sided |
| Number of poles | 3 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Built-in length | 0 mm |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Monitoring equipment | None |
| For Ex-Zone dust | 21, 22 |
| Luminous flux at emergency operation | 185 lm |
| Recognition distance | 25 m |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 60 h |
| Energy efficiency class of the built-in lamp | Other |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Highest energy efficiency class of the exchangeable lamp | E |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Nominal operation time | 60000 h |
| Exchangeable control gear | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.95 |
Description
Ex-d escape sign and safety luminaires (LED) for Zone 1/21dKLK 23 LED - eXLink; clear; 1x M20 metal eXlink
