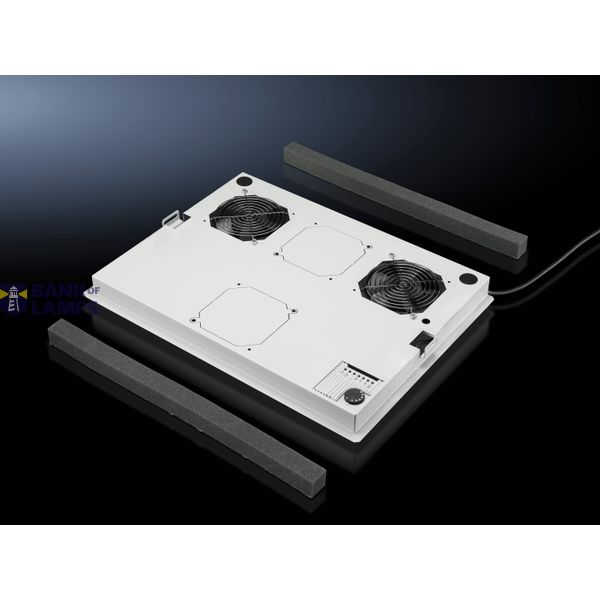

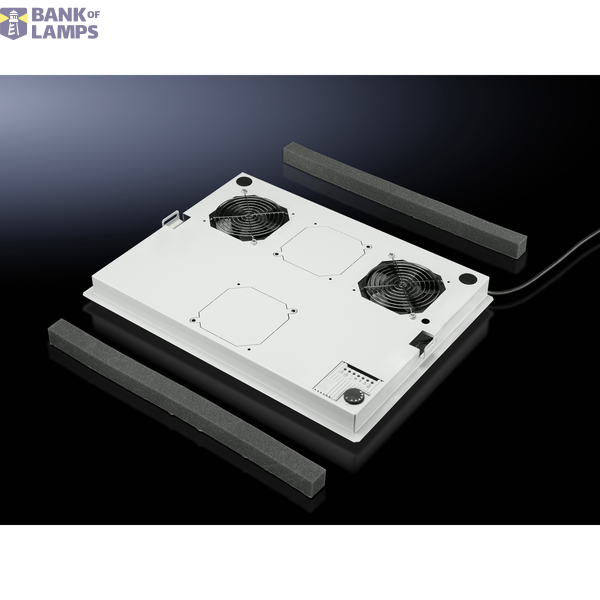

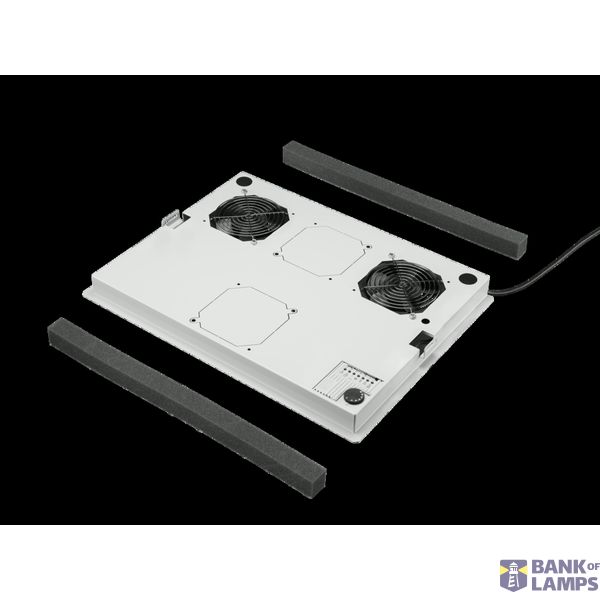

DK VENTILATION SHEET BT 800X600
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DK VENTILATION SHEET BT 800X600 |
| Brand | Rittal |
| Country of origin* | ES |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 5915 00 |
| ETIM | EC000320 |
| Degree of protection (IP) | Other |
| Volume flow, freeblowing | 320 m³/h |
| Operating voltage at AC 50 Hz | 207-253 V |
| Operating voltage at AC 60 Hz | 207-253 V |
Packing details
| Packing level 1 | 4028177168947 |
Other Technical data
| Mounting method | Other |
| Colour | Grey |
| Width | 800 mm |
| Depth | 600 mm |
| RAL-number | 7035 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 2 |
| EMC-version | No |
| With filter | No |
| Rated power | 30 W |
| Roof ventilator | Yes |
| Built as slide-in ventilator | No |
| Air circulator | No |
| Suitable for wall built-in | No |
Description
DK LÜFTUNGSBLECH BT 800X600
