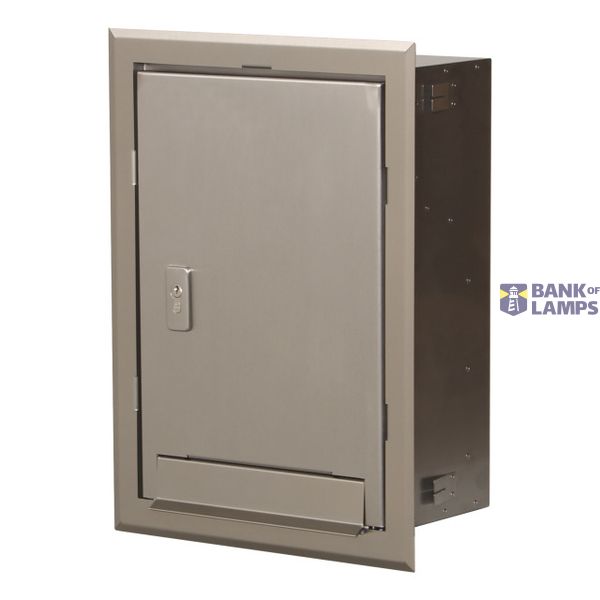

MD25 image 1

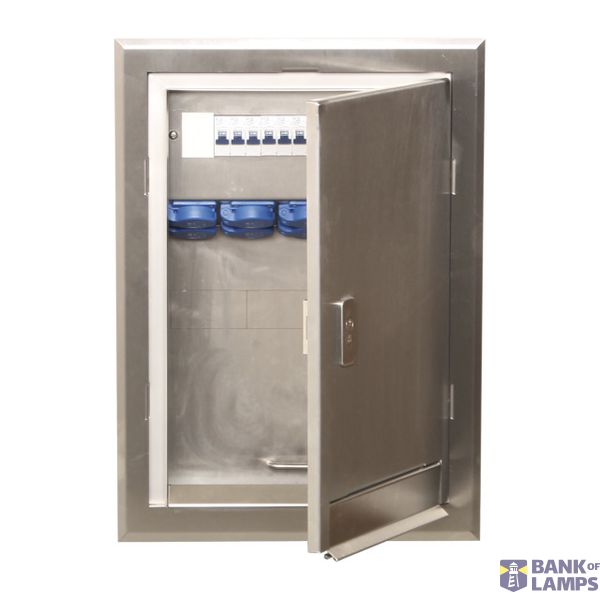

MD01 image 2
MD25 thumbnail 1
MD01 thumbnail 2
PCE

Distribution box stainless steel BV M-EUV2 63/110-0-2/V1/A

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Distribution box stainless steel BV M-EUV2 63/110-0-2/V1/A
Brand PCE
Harmonized System Code 8537 1098 00
ETIM EC000379
Handling Flush mounted (plaster)
Degree of protection (IP) IP43

Packing details

Packing level 1 9003399276224

Other Technical data

Colour Stainless steel
Width 420 mm
Height 580 mm
Depth 212 mm
Number of socket outlets with protective contact (type F) 2
Protection Overcurrent switch
Housing material Stainless steel
Earth leakage switch Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A 1x16A5p400V
CEE socket outlet 32 A 1x32A5p400V
Power supply/connection possibility 1 cable (branch line)
Number of miniature circuit breakers 4
Type of mains connection Other

Downloads

Product data sheet

Description

Maueröffnung: B x H x T in mm = 400 x 550 x 212
