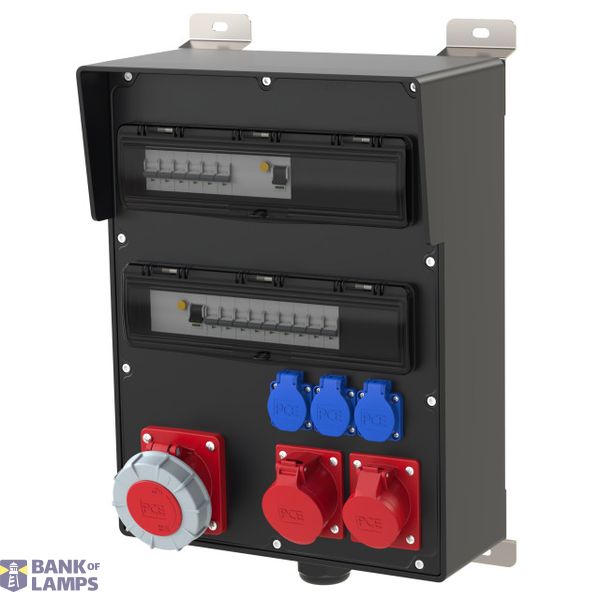

Distribution box rubber wall mounted ZAMS BV 63/5 32/5 16/5 3xSSD M50u Dk IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted ZAMS BV 63/5 32/5 16/5 3xSSD M50u Dk IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399386411

Other Technical data

Colour	Black
Width	400 mm
Height	527 mm
Depth	205 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	7
Type of mains connection	Other

Downloads

Product data sheet

Description

solid rubber distribution box series ZAMS with roof IP54 527x400x205(HxBxT) universal
with thermoplastic lid black IP54 closed for max 54TE three-row (2x18TE mounted)
mounted on 2 wall fitting panel stainless steel
1xM50 cable gland on bottom (cable diameter 32-38mm PG42) black
1xCEE-socket 63A 5p 400V IP67 protected over pre-fuse RCD
1xCEE-socket 32A 5p 400V protected over 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V protected over 1xMCB 16A 3p C
3xSK-socket 16A 250V IP54 protected over 3xMCB 16A 1p C
1xRCD 63A/4/0.3A (TYP A 63AT) over CEE 63/5 outlet
protected with 1x MCB 63A 3p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 32A- und 16A-outlets
protected with 1x MCB 63A 3p C
MCB and RCD made by Eaton ÖVE / VDE
distribution box is ready wired on terminals up to 5x50qmm
