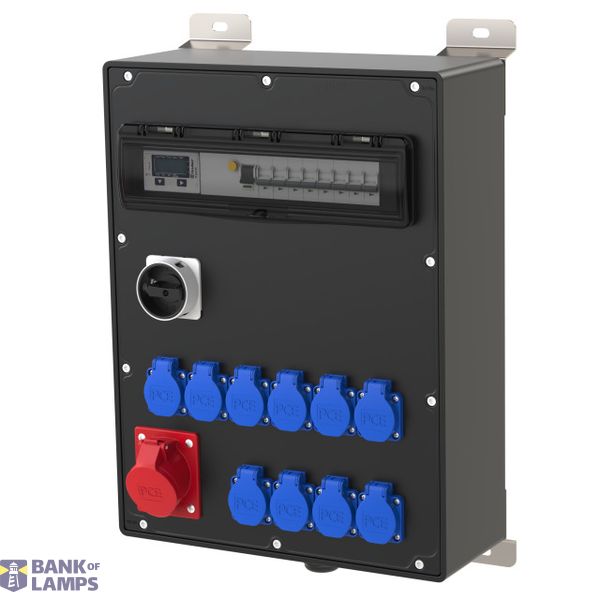

Distribution box rubber wall mounted ZAMS BV 16/5 10xSSD M32u HKL Zä Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted ZAMS BV 16/5 10xSSD M32u HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399352034

Other Technical data

Colour	Black
Width	400 mm
Height	527 mm
Depth	154 mm
Number of socket outlets with protective contact (type F)	10
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

solid rubber distribution box - series ZAMS IP44 527x400x154(HxBxT) universal
mounted on 2x 2 anchor rails a' 470mm
1x earth screw M6
1xM32 cable gland from bottom (cable diameter 18-25mm PG29) black
1xCEE-socket 16A 5p 400V protected with 1xMCB 16A 3p C
10x safety socket DIN49440 16A 250V IP54 protected with 5xMCBs 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
1x polyphase meter DIGI MID 65A 400V 3p 4TE -25°..55°C 1,5-16² over all outlets made by FINDER
1x main switch 40A 3pol 400V over all outlets
MCBs and RCD are made by Eaton ÖVE / VDE
distribution box is ready wired for using
