Distribution box rubber wall mounted TRAUNSEE IV 4xSSD M20oBVu VC5p v IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted TRAUNSEE IV 4xSSD M20oBVu VC5p v IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399105852

Other Technical data

Colour	Black
Width	165 mm
Height	260 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

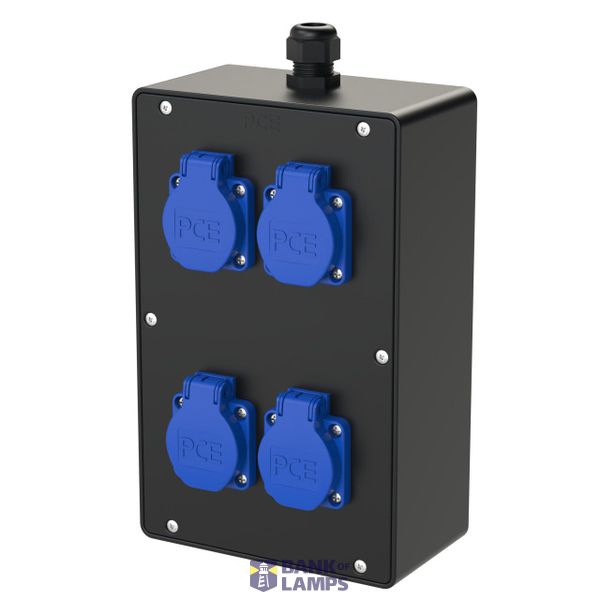

Distribution box, wall mounted, solid rubber, series TRAUNSEE IP54 260x165x90
1xM20 threaded cable gland on the top (cable diameter 10-14mm PG16) black
1xM20 threaded blind cap on the bottom
4xsocket (DIN49440) 16A 250V IP54 not fused
Distribution box is wired up to terminals 5x10sqmm
