Distribution box rubber wall mounted TRAUNSEE IV 4xSSD 2M20o 2VC3p h IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted TRAUNSEE IV 4xSSD 2M20o 2VC3p h IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399120916

Other Technical data

Colour	Black
Width	260 mm
Height	165 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	4
Protection	None
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	1 cable (branch line)
Type of mains connection	Other

Downloads

Product data sheet

Description

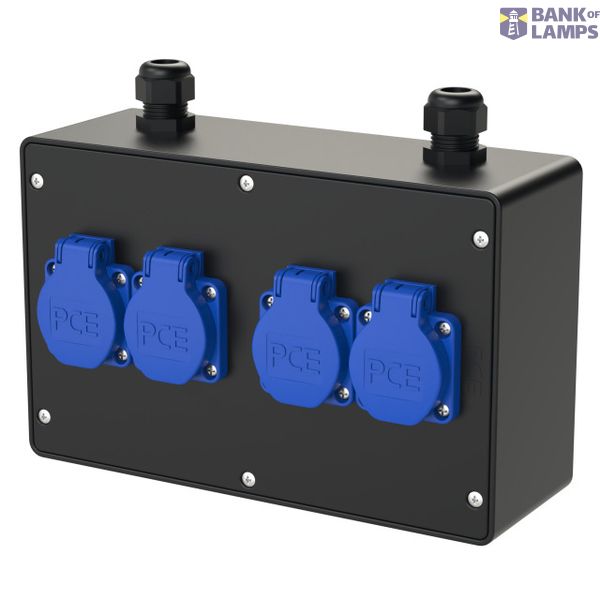

Distribution box, wall mounted, solid rubber, series TRAUNSEE IP54 165x260x90
2xM20 threaded cable gland on the top (cable diameter 10-14mm PG16) black
4xsocket (DIN4944) 16A 250V IP54 not fused
each 2xDIN49440-sockets are wired up to 2xterminals 5x10sqmm
