Distribution box rubber wall mounted TRAUNSEE IV 32/5 2xSSD M32/M25o VC5p/3pIP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted TRAUNSEE IV 32/5 2xSSD M32/M25o VC5p/3pIP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399219047

Other Technical data

Colour	Black
Width	260 mm
Height	165 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Type of mains connection	Other

Downloads

Product data sheet

Description

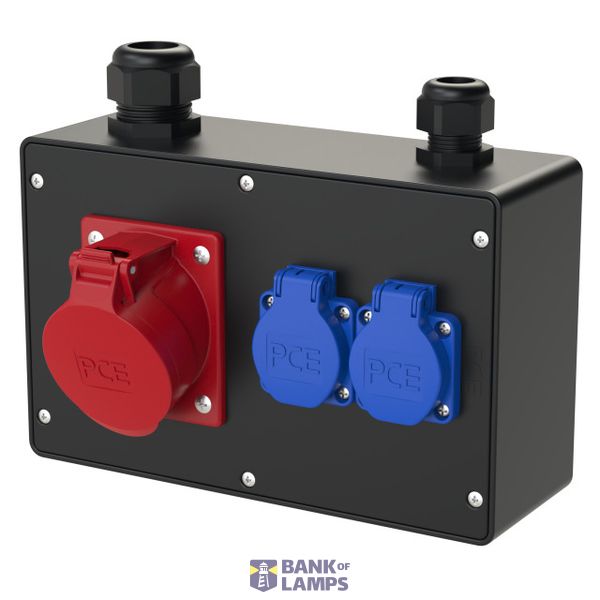

solid rubber distribution box series TRAUNSEE IP54 165x260x90 (hor.)
1xM32 cable gland on top (cable diameter 18-25mm PG29) black
1xM25 cable gland on top (cable diameter 13-18mm PG21) black
1xCEE-socket 32A 5p 400V protected over pre-fuse of supply line
2xSK-socket 16A 250V IP54 protected over pre-fuse of supply line
CEE wired on vario-connector 5p 10qmm
2xSSD wired on vario-connector 3p 10qmm
