Distribution box rubber wall mounted TRAUNSEE BV 3xSSD M25oBVu VC5p Ea v IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted TRAUNSEE BV 3xSSD M25oBVu VC5p Ea v IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399121203

Other Technical data

Colour	Black
Width	165 mm
Height	260 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	3

Downloads

Product data sheet

Description

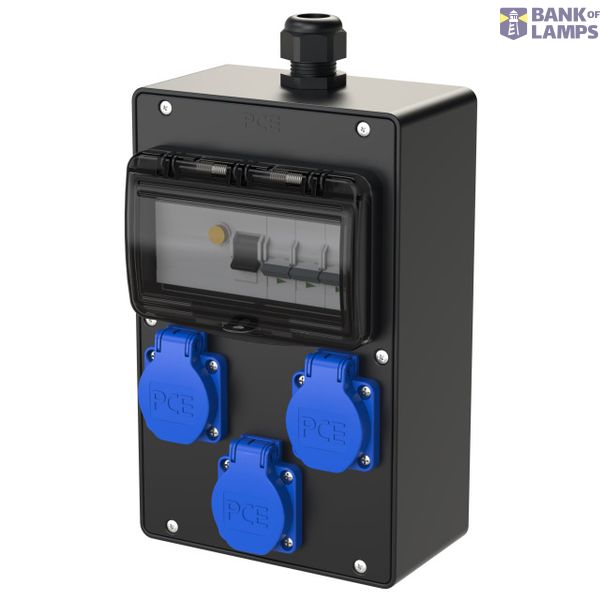

Distribution box, wall mounted, solid rubber, series TRAUNSEE IP54 260x165x90
1xM25 threaded cable gland on the top (cable diameter 13-18mm) black
1xM25 threaded blind cap on the bottom
3xsocket (DIN49440) 16A 250V IP54 fused with 3xMCB 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all sockets
Distribution box is wired up to terminals 5x10sqmm
