Distribution box rubber wall mounted TRAUNSEE BV 32/5 SSD M32oBVu VC Ea v IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted TRAUNSEE BV 32/5 SSD M32oBVu VC Ea v IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399316586

Other Technical data

Colour	Black
Width	165 mm
Height	260 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	1

Downloads

Product data sheet

Description

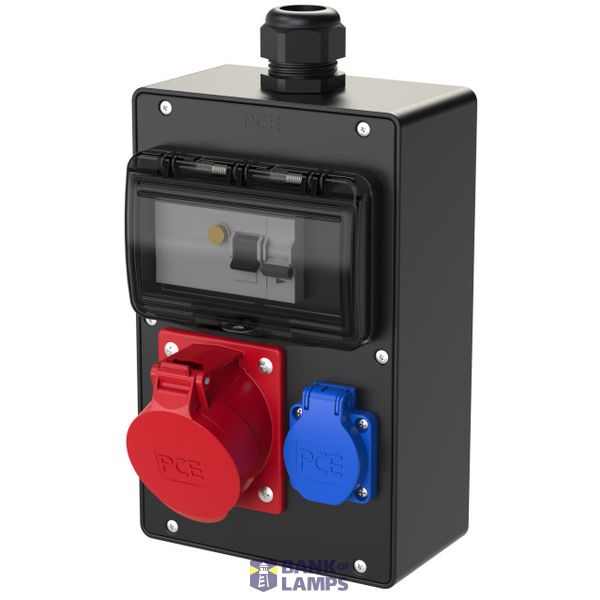

Distribution box, wall mounted, solid rubber, series TRAUNSEE IP54 260x165x90
1xM32 threaded cable gland on the top (cable diameter 18-25mm) black
1xM32 threaded blind cap on the bottom
1xCEE socket 32A 5p 400V not fused
1xsocket (DIN49440) 16A 250V IP54 fused with 1xMCB 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all sockets
Distribution box is wired up to terminals 5x10sqmm
