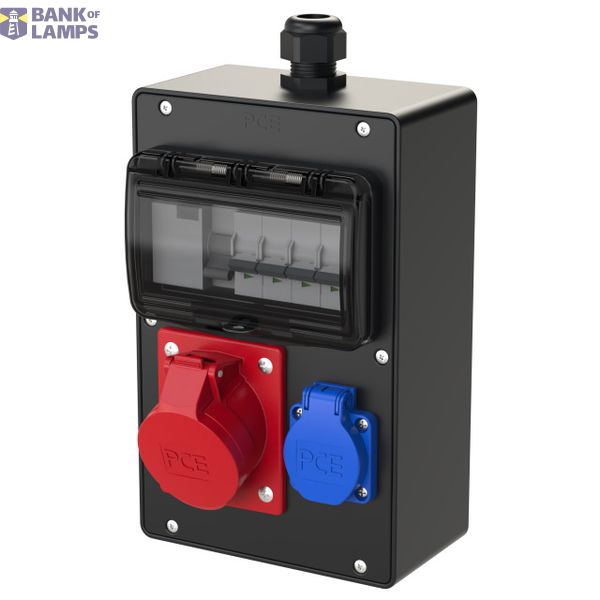

Distribution box rubber wall mounted Traunsee BV 16/5 SSD M25oBVu VC Ea v

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted Traunsee BV 16/5 SSD M25oBVu VC Ea v
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399507533

Other Technical data

Colour	Black
Width	165 mm
Height	260 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	1
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	2

Downloads

Product data sheet

Description

Vollgummi-Verteiler Typ TRAUNSEE IP44 165x260x90 (vert.)
1xM25 Verschraubung oben (Kabeldurchm. 13-18mm PG21) schwarz
1xBlindverschraubung M25 unten
1xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
1xSK-Steckdose 16A 250V IP54 abgesichert ü. 1xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf Vario-Connector 5polig 10qmm verdrahtet
