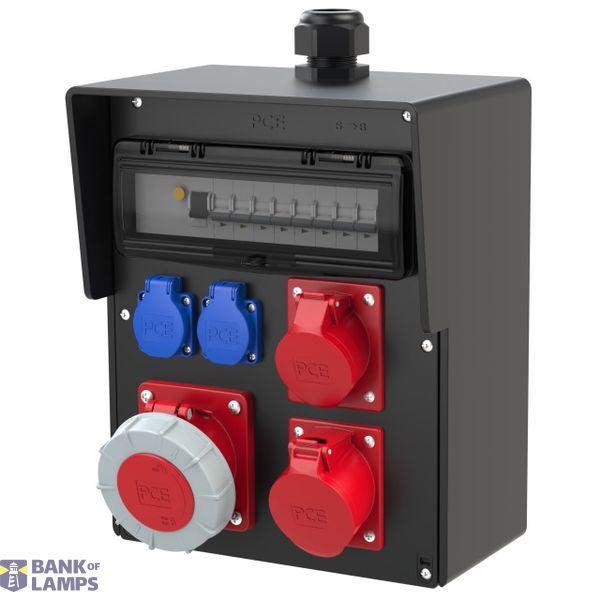

Distribution box rubber wall mounted SALZBURG BV 63/5 32/5 16/5 2xSSD M40o IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted SALZBURG BV 63/5 32/5 16/5 2xSSD M40o IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399047343

Other Technical data

Colour	Black
Width	298 mm
Height	370 mm
Depth	203 mm
Number of socket outlets with protective contact (type F)	2
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

solid rubber distribution box - wall mounting series SALZBURG IP54 298x370x203 TOPmo.
1xM40 cable gland on top (cable diameter 22-32mm PG36) black
1x blind cable gland M40 from bottom
1xCEE-socket 63A 5p 400V unprotected
1xCEE-socket 32A 5p 400V protected with 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V protected with 1xMCB 16A 3p C
2x socket DIN49440 16A 250V IP54 protected with 2xMCBs 16A 1p B
1xRCD 63A/4/0,03A (TYP A 63AT) over all outlets
MCB and RCD made by Eaton ÖVE / VDE
distribution box is wired on terminals up to max.5x25qmm (5x16qmm flexible wire)
