Distribution box rubber wall mounted SALZBURG BV 2x32/5 3xSSD M32oBVu HKL IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted SALZBURG BV 2x32/5 3xSSD M32oBVu HKL IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399991462

Other Technical data

Colour	Black
Width	298 mm
Height	370 mm
Depth	203 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	2x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

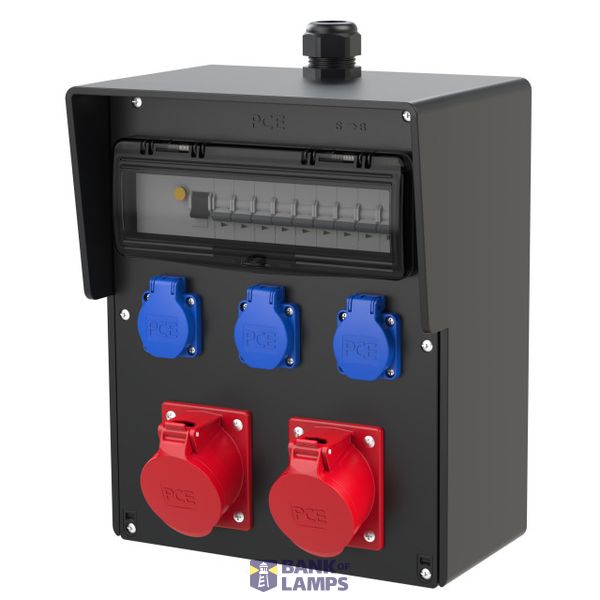

Distribution box, wall mounted, solid rubber, series SALZBURG IP54 298x370x203 TOPmo.
1xM32 cable gland on top, (cable diameter. 18-25mm PG29) black
1xM32 blind cable gland from bottom
2xCEE-sockets 32A 5p 400V fused with 2xMCB 32A 3p C
3xSK-sockets 16A 250V IP54 fused with 3xMCB 16A 1p B
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
distribution box is wired on terminals up to max.5x25qmm/5x16qmmYF!
machines and RCD are Eaton ÖVE / VDE branded
