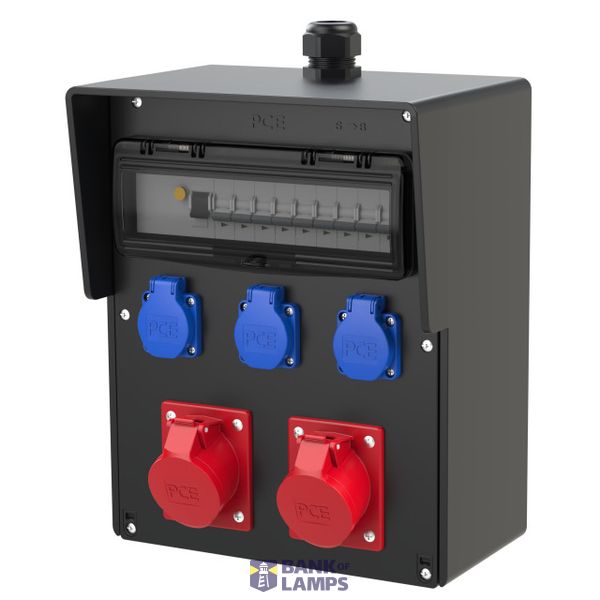

Distribution box rubber wall mounted Salzburg BV 2x16/5 3xSSD M32oBVu HKL Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted Salzburg BV 2x16/5 3xSSD M32oBVu HKL Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399045752

Other Technical data

Colour	Black
Width	298 mm
Height	370 mm
Depth	203 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

solid rubber distribution box series SALZBURG IP54 298x370x203 TOPmo.
1xM32 cable gland on top (cable diameter 18-25mm) black
1xM32 blind cap from bottom side
2xCEE-socket 16A 5p 400V fused with 2xMCB 16A 3p C
3xschuko socket 16A 250V IP54 fused with 3xMCB 16A 1p B
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
RCD and MCB's brand EATON
box is ready wired on HKL-terminals (max.5x25mm²/5x16mm²YF!)
