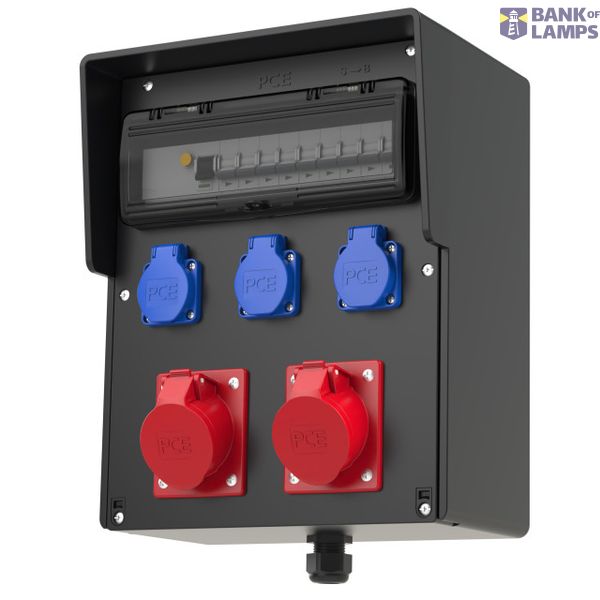

Distribution box rubber wall mounted SALZBURG BV 2x16/5 3xSSD M25u HKL Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted SALZBURG BV 2x16/5 3xSSD M25u HKL Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399099755

Other Technical data

Colour	Black
Width	298 mm
Height	370 mm
Depth	203 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

Vollgummi-Wandverteiler Typ SALZBURG IP54 298x370x203 TOPmo.
1xM25 Verschraubung unten (Kabeldurchm. 13-18mm PG21) schw.
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
3xSK-Steckdose 16A 250V IP54 abgesichert ü. 3xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf HKL-Klemme (max.5x25qmm/5x16qmmYF!) verdrahtet
