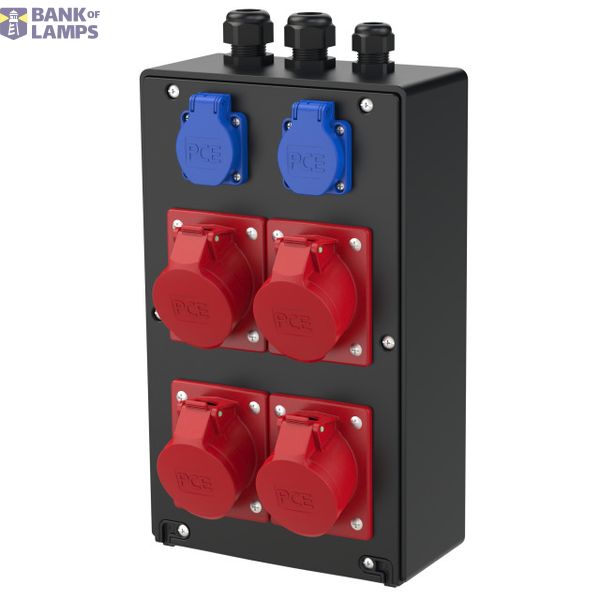

Distribution box rubber wall mounted GREIN IV 4x16/5 2xSSD 2M25oM20o 3xVC IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted GREIN IV 4x16/5 2xSSD 2M25oM20o 3xVC IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768361

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	97 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	4x16A5p400V
Power supply/connection possibility	2 cables (ring line)

Downloads

Product data sheet

Description

solid rubber distribution box type GREIn IP54 350x210x100
2xM25 cable gland on top (cable diameter 13-18mm PG21) black
1xM20 cable gland on top (Kabeldurchm. 10-14mm PG16) black
4xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
2xSchuko-sockets 16A 250V IP54 blue protected with pre-fuse of supply line
2xCEE wired on Vario-Connector 5polig 10qmm
2xSSD wired on Vario-Connector 3polig 10qmm
