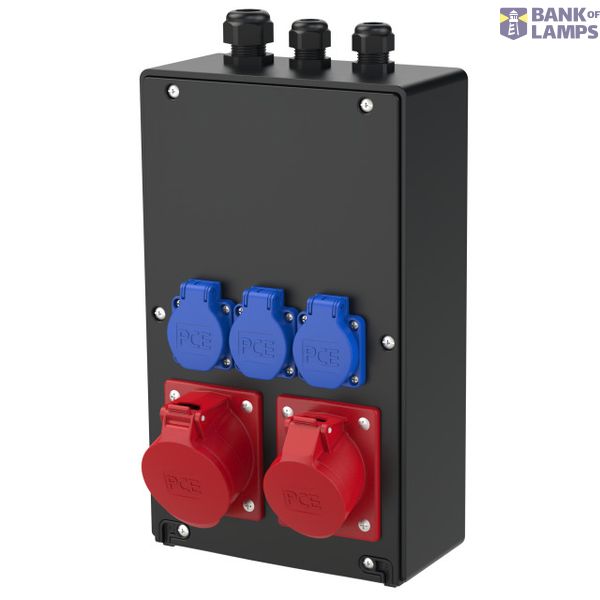

Distribution box rubber wall mounted GREIN IV 32/5 16/5 3xSSD M25o2M20o IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted GREIN IV 32/5 16/5 3xSSD M25o2M20o IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768415

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	97 mm
Number of socket outlets with protective contact (type F)	3
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)

Downloads

Product data sheet

Description

solid rubber distribution box - wall mounting series GREIN IP54 350x210x100
1xM25 cable gland on top (cable diameter 13-18mm PG21) black
2xM20 cable gland on top (cable diameter 7-14mm PG16) black
1xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
1xCEE-socket 16A 5p 400V protected with pre-fuse of supply line
3x socket DIN49440 16A 250V IP54 protected with pre-fuse of supply line
CEE 32/5 wired on Vario-Connector 5p 10qmm
CEE 16/5 wired on Vario-Connector 5p 10qmm
3x sockets DIN49440 wired on Vario-Connector 3p 10qmm
