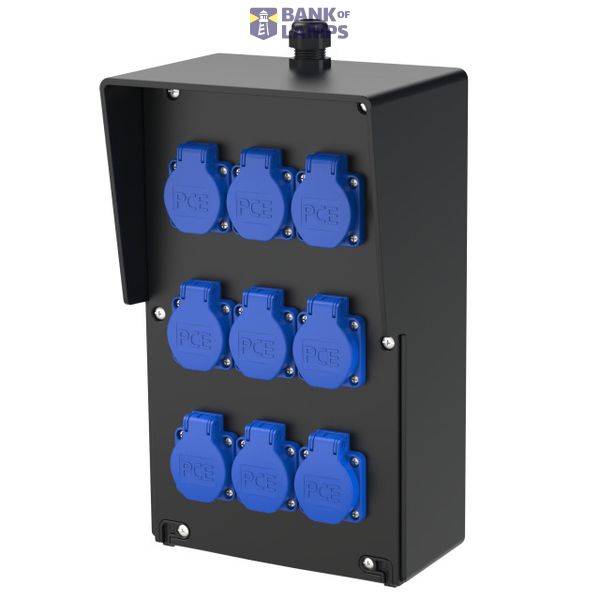

Distribution box rubber wall mounted FURT IV 9xSSD M20o VC5p IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FURT IV 9xSSD M20o VC5p IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768330

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	150 mm
Number of socket outlets with protective contact (type F)	9
Protection	None
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

Distribution box, wall mounted, solid rubber, series FURT IP54 350x210x150
1xM20 threaded cable gland on the top (cable diameter 7-14mm PG16) black
9xsocket (DIN49440) 16A 250V IP54 not fused
Distribution box is wired up to terminals 5x10qmm
