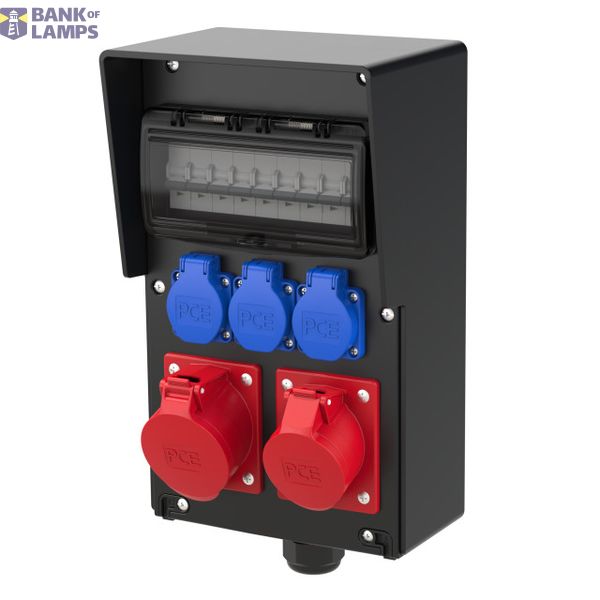

Distribution box rubber wall mounted FURT IV 32/5 16/5 3xSSD M32u HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FURT IV 32/5 16/5 3xSSD M32u HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768323

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	146 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

solid rubber distributon box wall mounted type FURT IP54 350x210x150(100)
1xM32 cable gland from bottom (cable diam.: 18-25mm PG29) black
1xCEE-socket 32A 5p 400V fused with 1xMCB 32A 3p C
1xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C
3xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
Label: "Additional protection by RCCBs required on the supply side!"
