Distribution box rubber wall mounted FURT IV 2x32/5 6xSSD M25oM20o 2VC5p IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FURT IV 2x32/5 6xSSD M25oM20o 2VC5p IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768354

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	150 mm
Number of socket outlets with protective contact (type F)	6
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 32 A	2x32A5p400V
Power supply/connection possibility	1 cable (branch line)
Type of mains connection	Other

Downloads

Product data sheet

Description

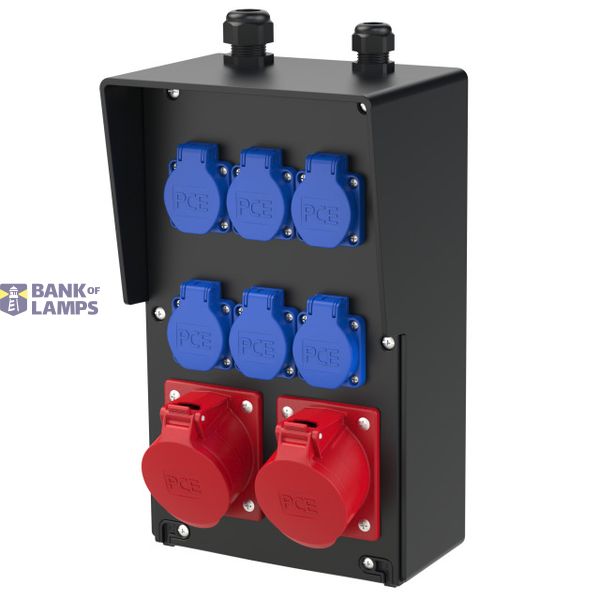

Distribution box, wall mounted, solid rubber, series FURT IP54 350x210x150
1xM25 threaded cable gland on the top (cable diameter 13-18mm PG21) black
1xM20 threaded cable gland on the top (cable diameter 7-14mm PG16) black
2xCEE-socket 32A 5p 400V not fused
6xsocket (DIN49440) 16A 250V IP54 not fused
2xCEE wired up to terminals 5x10qmm
6xDIN 49440-sockets wired up to terminals 5x10qmm
