Distribution box rubber wall mounted Furt IV 2x16/5 3xSSD M25u HKL Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted Furt IV 2x16/5 3xSSD M25u HKL Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768316

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	146 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	5

Downloads

Product data sheet

Description

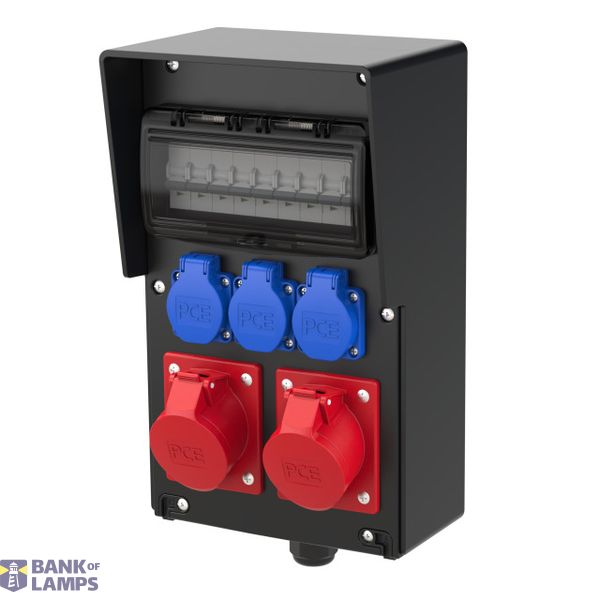

solid rubber distribution box, wall mounted type FURT IP54 350x210x150(100)
1xM25 cable gland from bottom (cable diam.: 13-18mm PG21) black
2xCEE-sockets 16A 5p 400V fused with 2xMCB`s 16A 3p C
3xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p C
MCB`s brand Eaton
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
Label: "Additional protection required by RCCB on supply side!"
