Distribution box rubber wall mounted FURT BV 6xSSD M25oBVu HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FURT BV 6xSSD M25oBVu HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399019050

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	146 mm
Number of socket outlets with protective contact (type F)	6
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

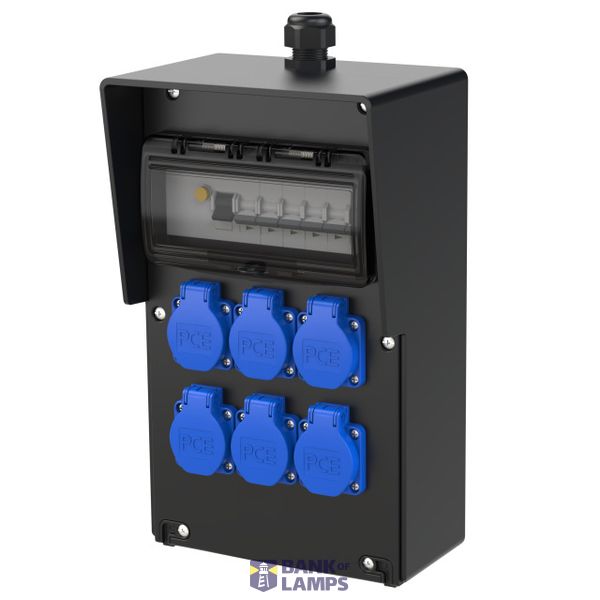

solid rubber distribution box wall mounting series FURT IP54 350x210x150(100)
1x M25 cable gland on the top (Kabeldurchm. 13-18mm PG21) black
1x cable gland M25 at the bottom
6x Schuko socket 16A 250V IP54 protected with 6x MCB 16A 1p C
1x RCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD are made by Eaton ÖVE7VDE
distribution box is ready wired on HKL connector (max.5x25qmm/5x16qmm flexible wire!)
