Distribution box rubber wall mounted FURT BV 16/5 3xSSD M25u HKL Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FURT BV 16/5 3xSSD M25u HKL Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399797866

Other Technical data

Colour	Black
Width	210 mm
Height	350 mm
Depth	146 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

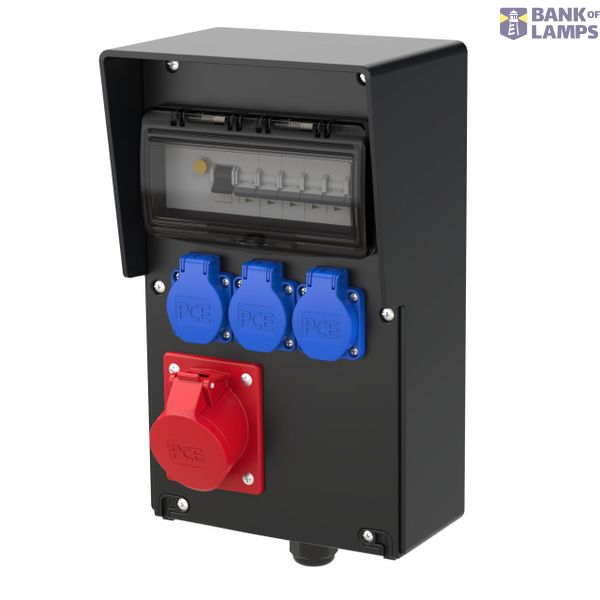

solid rubber distribution box, wall mounted, type FURT IP54 350x210x150(100)
1xM25 cable gland from bottom (cable diam.: 13-18mm PG21) black
1xCEE-socket 16A 5p 400V fused with 1x MCB 16A 3p C
3xSK-sockets 16A 250V IP54 fused with 3xMCB`s 16A 1p B
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distributon box is wired on terminals up to (max.5x25qmm/5x16qmmflexible wire!)
