Distribution box rubber wall mounted FREISTADT IV 2xSSD M20o VC3/2 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted FREISTADT IV 2xSSD M20o VC3/2 IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399966392

Other Technical data

Colour	Black
Width	129 mm
Height	129 mm
Depth	83 mm
Number of socket outlets with protective contact (type F)	2
Protection	None
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	1 cable (branch line)

Downloads

Product data sheet

Description

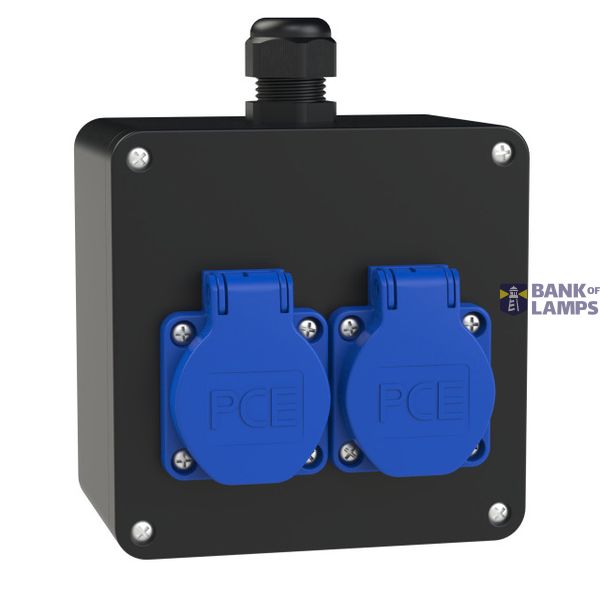

Distribution box, wall mounted, solid rubber, series FREISTADT IP54 129x129x83mm
1xM20 threaded cable gland on the top (cable diameter 10-14mm PG16) black
2xsocket (DIN49440) 16A 250V IP54 not fused
Distribution box is wirde up to terminals 3x10sqmm
