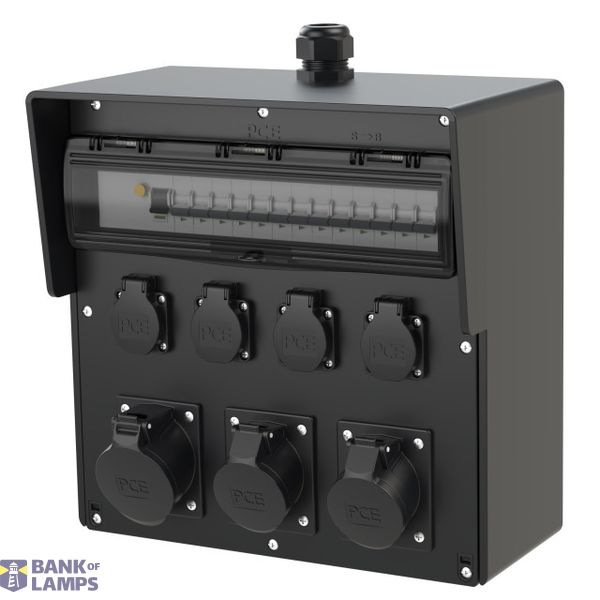

Distribution box rubber wall mounted Bruck BV 32/5 2x16/5 4xSSD M32o H MI Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber wall mounted Bruck BV 32/5 2x16/5 4xSSD M32o H MI Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399748950

Other Technical data

Colour	Black
Width	370 mm
Height	370 mm
Depth	203 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	7

Downloads

Product data sheet

Description

solid rubber distribution box, wall mounted, Typ BRUCK IP54 370x370x203 TOP
1xM32 cable gland on top (cable diam. 18-25mm PG29) black
1x blind cable gland M32 from bottom
1xCEE-socket 32A 5p 400V black - protected with 1xMCB 32A 3p C
2xCEE-socket 16A 5p 400V black fused with 2xMCB 16A 3p C
4xSK-socket 16A 250V IP54 black fused with 4xMCB 16A 1p B
1xRCD 63A/4/0,03A (TYP A 40AT) over all outlets
machines and RCDs made by Eaton ÖVE / VDE
distribution box is wired on terminals up to max.5x25qmm/5x16qmmYF!
