Distribution box rubber mobile ZIRL MV 4x63/5 2m5G35St125/5 Schlitt.Tyt IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile ZIRL MV 4x63/5 2m5G35St125/5 Schlitt.Tyt IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399612602

Other Technical data

Colour	Black
Width	400 mm
Height	527 mm
Depth	270 mm
Cable length	2 m
Protection	D0-system
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 63 A	4x63A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 125 A

Downloads

Product data sheet

Description

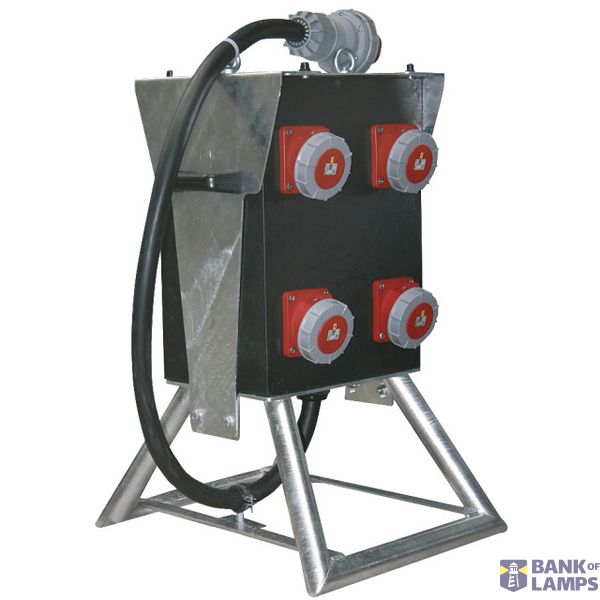

rubber distribution box series ZIRL IP54 527x400x270(HxBxT) with plastic lid
on tubular steel stand according to plan (HxBxT 900x500x600mm)
2m cable H07RN-F 5G35mm2 black with plug 125A 5p 400V
4xCEE-socket 63A 5p 400V IP67 protected over 4x Tytan D02 63A 3p
distribution box is ready wired for using
cable is strutted with clamp on lower framework
