Distribution box rubber mobile Zirl BV 2x63/5 2x32/5 2x16/5 5xSSD2m5G35

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile Zirl BV 2x63/5 2x32/5 2x16/5 5xSSD2m5G35
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399848896

Other Technical data

Colour	Black
Width	400 mm
Height	527 mm
Depth	270 mm
Number of socket outlets with protective contact (type F)	5
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	2x32A5p400V
CEE socket outlet 63 A	2x63A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	11
Type of mains connection	CEE 125 A

Downloads

Product data sheet

Description

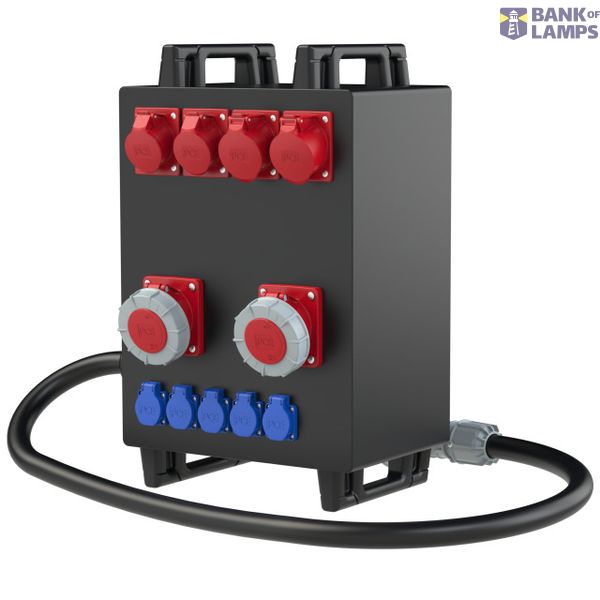

solid rubber distribution box model ZIRL IP54 527x400x270(HxBxT) universal
with 2x handle on top and 2x adjustable feet from bottom (stackable)
2m cable H07RN-F 5G35 black with CEE-plug 125A 5p 400V 6h
2xCEE-sockets 63A 5p 400V IP67 fused with 2xMCB`s 63A 3p C (before FI)
2xCEE-sockets 32A 5p 400V fused with 2xMCB`s 32A 3p C (before FI)
2xCEE-sockets 16A 5p 400V fused with 2xMCB`s 16A 3p C
5xSK-sockets 16A 250V IP54 fused with 5xMCB`s 16A 1p C
2xRCD 63A/4/0.03A (TYP A 63AT) over 2xCEE 63/5 outlets
2xRCD 40A/4/0.03A (TYP A 40AT) over 2xCEE 32/5 outlets
1xRCD 63A/4/0.03A (TYP A 63AT) over 2xCEE 16/5 and 6xSK-sockets
pre-fused with 1xMCB 63A 3p C
MCB`s and RCD`s are SIEMENS brandes
distribution box is ready wired for using
