Distribution box rubber mobile Zirl BV 125/5 2x63/5 2x32/5 2x16/5 4x16 IP54
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Distribution box rubber mobile Zirl BV 125/5 2x63/5 2x32/5 2x16/5 4x16 IP54 |
| Brand | PCE |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Surface treatment contacts | Nickel-plated |
| Handling | Portable |
| Contact material | CuZn |
| Degree of protection (IP) | IP54 |
Packing details
| Packing level 1 | 9003399521553 |
Other Technical data
| Colour | Black |
| Width | 400 mm |
| Height | 527 mm |
| Depth | 270 mm |
| Number of socket outlets with protective contact (type F) | 4 |
| Cable length | 2 m |
| Protection | Overcurrent switch |
| Housing material | Rubber |
| Leakage current type | A |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| CEE socket outlet 16 A | 2x16A5p400V |
| CEE socket outlet 32 A | 2x32A5p400V |
| CEE socket outlet 63 A | 2x63A5p400V |
| CEE socket outlet 125 A | 1x125A5p400V |
| Other fixtures and/or empty locations | 4 |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 10 |
| Type of mains connection | CEE 125 A |
| Number of poles mains connection | 5 |
Downloads
Description

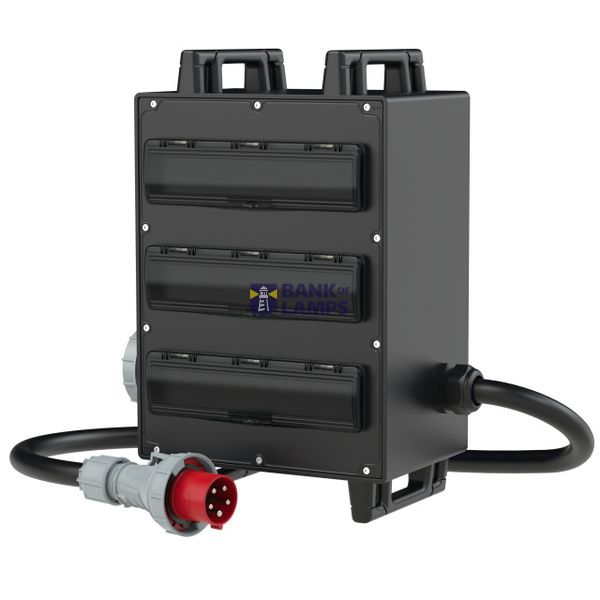

solid rubber distribution box series ZIRL IP54 527x400x270 (HxWxD) universal
mit 2x carrying handle on top and 2x standing feet on the bottom (stackable)
2m cable H07RN-F 5G35mm2 black with plug 125A 5p 400V
1xCEE-socket 125A 5p 400V protected with pre-fuse of supply line
2xCEE-socket 63A 5p 400V IP67 fused with 2xMCB 63A 3p C (MCB befor RCFD)
2xCEE-socket 32A 5p 400V fused with 2xMCB 32A 3p C
2xCEE-socket 16A 5p 400V fused with 2xMCB 16A 3p C
4xCEE-socket 16A 3p 230V fused with 2xMCB 16A 1p C
4xSchuko-socket 16A 250V IP54 fused with 2xLS 16A 1p C
2xRCD 63A/4/0.03A (TYPE A 63AT) over 2x CEE 63/5
1xRCD 63A/4/0.03A (TYP A 63AT) over 2x CEE 32/5
fused with 1xMCB 63A 3p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 16 outlets>1xMCB 63A 3p C
MCB and RCD made by Eaton ÖVE / VDE
distribution box is ready wired for using
Note: Number of outgoing circuits (ready for operation)
max. current limited by Ina!
