Technical Information
| Item condition |
New |
| Manufacture name |

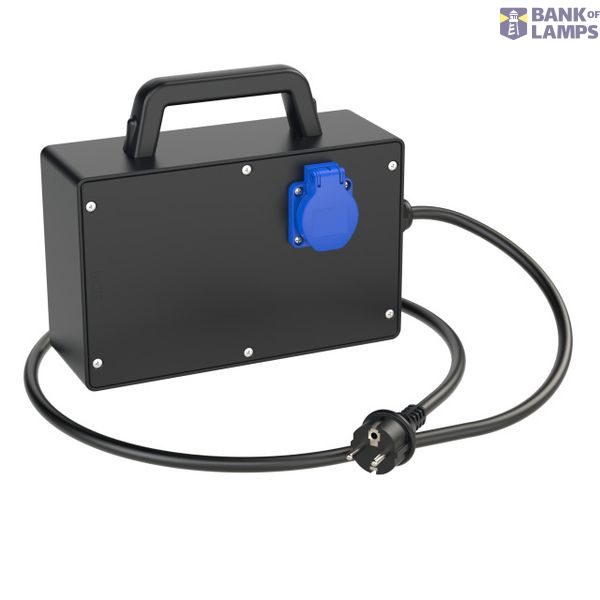

Distribution box rubber mobile TRAUNSEE MV SSD 0.5kVA 230/230V 3m2G1.5H IP54 |
| Brand |
PCE
|
| Harmonized System Code |
8537 1098 00
|
| ETIM |
EC000379
|
| Handling |
Portable |
| Degree of protection (IP) |
IP44 |
Packing details
| Packing level 1 |
9003399121326 |
Other Technical data
| Colour |
Black |
| Width |
260 mm |
| Height |
165 mm |
| Depth |
90 mm |
| Number of socket outlets with protective contact (type F) |
1 |
| Cable length |
3 m |
| Protection |
Other |
| Housing material |
Rubber |
| Earth leakage switch |
None |
| Power supply/connection possibility |
Feeder cable with plug |
| Type of mains connection |
Other |
Downloads
Description
Vollgummi-Verteiler Typ TRAUNSEE IP44 165x260x90 (hor.)
3m Kabel H07RN-F 2G1,5mm2 m.VG-Kont.-Stecker 16A 2p+PE 230V
1xSK-Steckdose 16A 250V IP54 abges.ü. 1xGlasrohrsich. 6,3AT
1xSicherheitstrafo 0.5kVA 230/230V prim. abges.ü. 1x therm. Schutzschalter 2A
Verteiler betriebsfertig angeschlossen
