Distribution box rubber mobile TRAUNSEE MV 16/5 2xSSD 1.5m5G2.5St16 H07 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile TRAUNSEE MV 16/5 2xSSD 1.5m5G2.5St16 H07 IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399105838

Other Technical data

Colour	Black
Width	260 mm
Height	165 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	2
Cable length	1.5 m
Protection	None
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

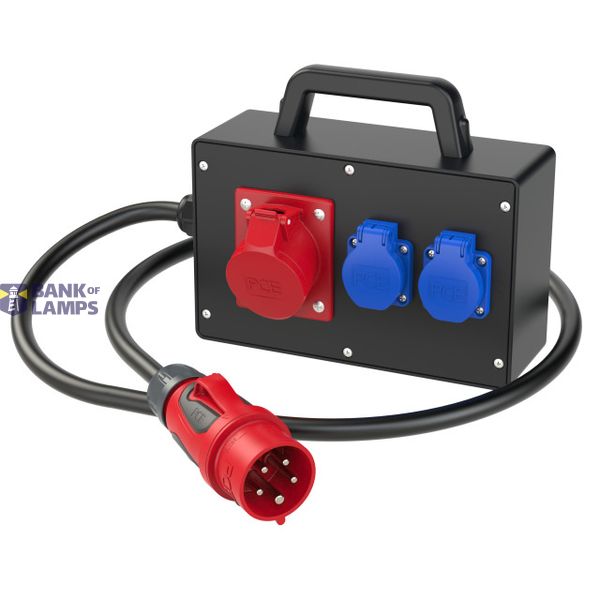

Distribution box, mobile, solid rubber, series TRAUNSEE IP44 165x260x90
1,5m cable H07RN-F 5G2,5mm² black with plug 16A 5p 400V
1xCEE-socket 16A 5p 400V not fused
2xsocket (DIN49440) 16A 250V IP54 not fused
Distribution box is ready wired for connection
