Distribution box rubber mobile TRAUNSEE BV 3xSSD 1.5m3G2.5VG-St H07 Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile TRAUNSEE BV 3xSSD 1.5m3G2.5VG-St H07 Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399120664

Other Technical data

Colour	Black
Width	260 mm
Height	165 mm
Depth	90 mm
Number of socket outlets with protective contact (type F)	3
Cable length	1.5 m
Protection	None
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

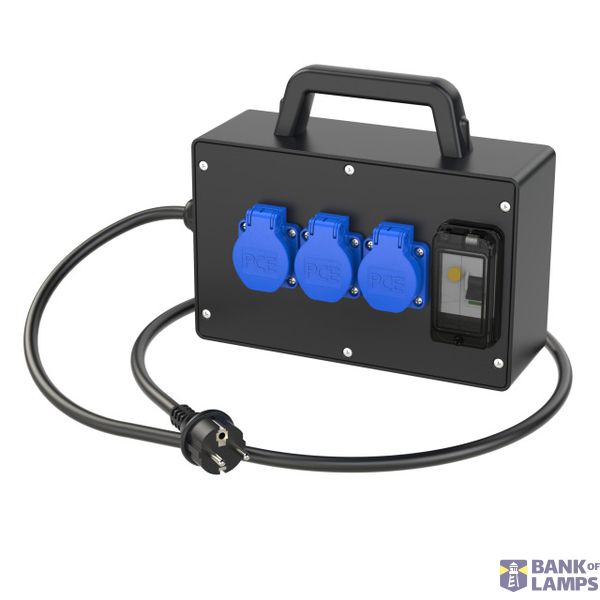

solid rubber distribution box type TRAUNSEE IP54 165x260x90 with handle
1,5m cable H07RN-F 3G2.5mm2 black with VG-SK-plug 16A 2p+PE 230V
3xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
1xRCD 25A/2/0.03A (TYP A 25AT) over all outlets
RCD is PCE Ö+V branded
distribution box is ready wired for using
