  • Distribution box rubber mobile Steyregg MV 4xSSD 2m3G2.5VG-St H07

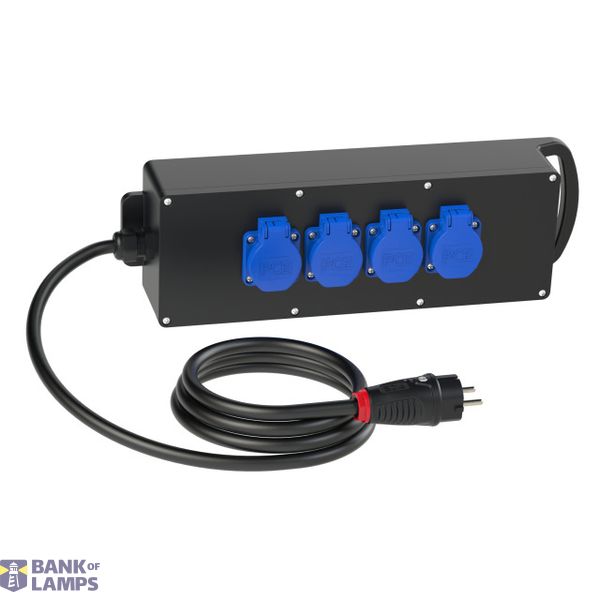

MD01 image 1
PCE

Distribution box rubber mobile Steyregg MV 4xSSD 2m3G2.5VG-St H07

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Distribution box rubber mobile Steyregg MV 4xSSD 2m3G2.5VG-St H07
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000379
Handling Portable
Degree of protection (IP) IP54

Packing details

Packing level 1 9003399009952

Other Technical data

Colour Black
Width 430 mm
Height 79 mm
Depth 129 mm
Number of socket outlets with protective contact (type F) 4
Cable length 2 m
Protection None
Housing material Rubber
Earth leakage switch None
Power supply/connection possibility Feeder cable with plug
Type of mains connection Protective contact (type F)

Downloads

Product data sheet

Description

mobile solid rubber distribution box series STEYREGG IP44 430x79x129
2m cable H07RN-F 3G2,5mm2 m. VG-plug 16A 2p+PE 230V
4xSK-socket 16A 250V IP54 protected over pre-fuse of supply line
distribution box is ready wired for using
