Distribution box rubber mobile Steyregg MV 2x16/5 2xSSD 2m5G4St32 MI Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile Steyregg MV 2x16/5 2xSSD 2m5G4St32 MI Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399262418

Other Technical data

Colour	Black
Width	430 mm
Height	79 mm
Depth	129 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	3
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

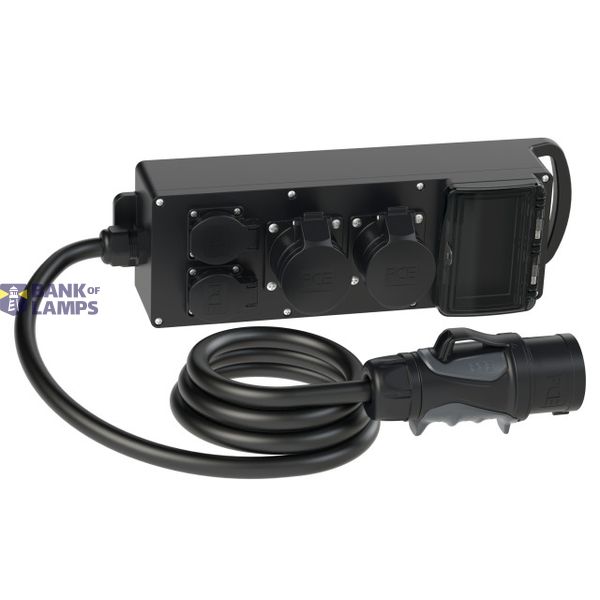

mobile solid rubber distribution box series STEYREGG IP54 430x79x129
2m cable H07RN-F 5G4mm2 black with plug 32A 5p 400V black
2xCEE-socket 16A 5p 400V black protected over 1xMCB 16A 3p C
2xSK-socket 16A 250V IP54 black protected over 2xMCB 16A 1p C
MCB made by Eaton ÖVE / VDE
distribution box is ready wired for using
label:"additional protection over RCD is required supply-sides!"
