Distribution box rubber mobile STEYREGG BV 2x32/5 2xSSD 2m5G4St32 H07 E IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile STEYREGG BV 2x32/5 2xSSD 2m5G4St32 H07 E IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399010767

Other Technical data

Colour	Black
Width	430 mm
Height	79 mm
Depth	129 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	2x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	2
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

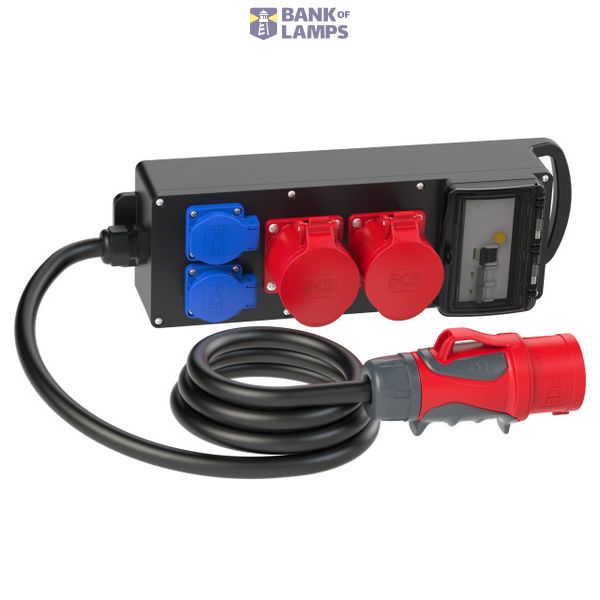

mobile solid rubber distribution box series STEYREGG IP54 430x79x129
2m cable H07RN-F 5G4mm2 black with plug 32A 5p 400V
2x CEE socket 32A 5p 400V protected with pre-fusing supply chain
2x Schuko socket 16A 250V IP54 protected with 2x MCB 16A 1p C
1x RCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD are made by Eaton ÖVE/VDE
distribution box is ready wired on for using
