Distribution box rubber mobile STEYREGG BV 2x16/5 2xSSD 2m5G2.5St16 Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile STEYREGG BV 2x16/5 2xSSD 2m5G2.5St16 Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399010620

Other Technical data

Colour	Black
Width	430 mm
Height	79 mm
Depth	129 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	None
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

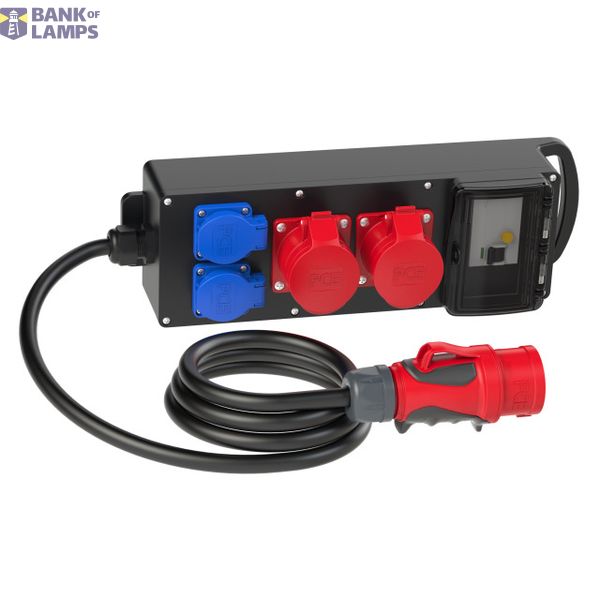

mobile solid rubber distribution box model STEYREGG IP54 430x79x129
2m cable H07RN-F 5G2,5mm2 black with plug 16A 5p 400V
2xCEE-sockets 16A 5p 400V protected with pre-fuse of supply line
2xSK-sockets 16A 250V IP54 protected with pre-fuse of supply line
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
