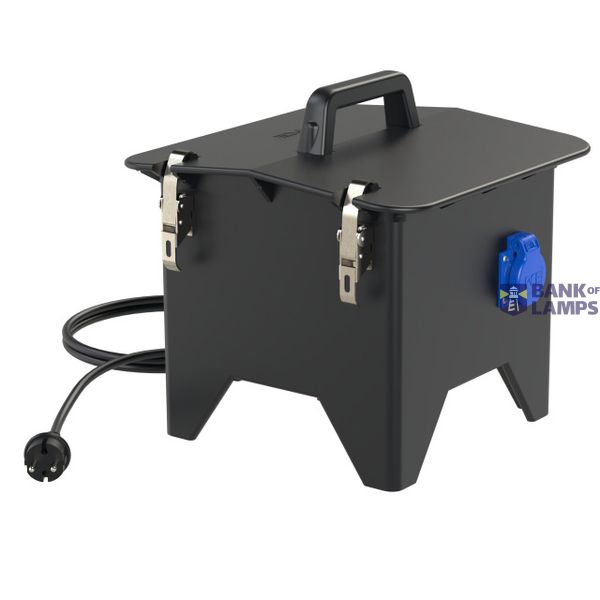

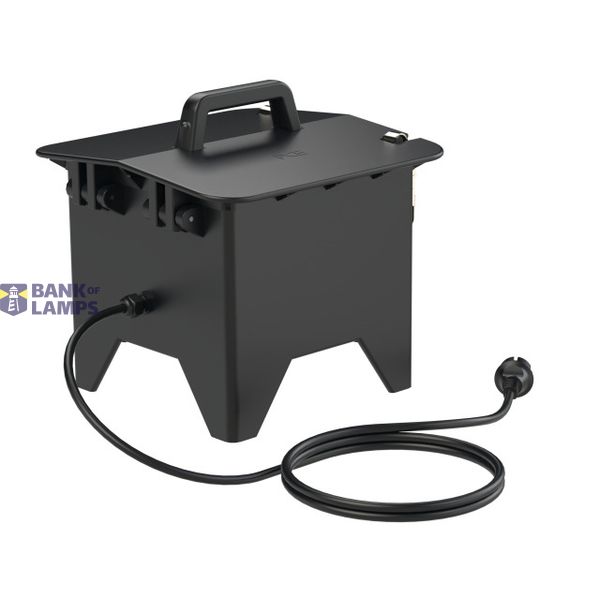

Distribution box rubber mobile SPITZ MV SSD 1kVA 230/230 3m2x1.5H07 70G IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile SPITZ MV SSD 1kVA 230/230 3m2x1.5H07 70G IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399161209

Other Technical data

Colour	Black
Width	320 mm
Height	320 mm
Depth	320 mm
Number of socket outlets with protective contact (type F)	1
Cable length	3 m
Protection	Other
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Other

Downloads

Product data sheet

Description

Mobiler Vollgummiverteiler Modell SPITZ IP54 320x320x320
3m Kabel H07RN-F 2G1,5mm2 m.VG-Kont.-Stecker 16A 2p+PE 230V
1xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsich. Zuleit. nach Trenntrafo
1xTrenntrafo 1.0kVA 230/230V prim. abges.ü. 1x therm. Schutzschalter 4.4A 1p
1xÜbertemperatursicherung 70 Grad C manuelle Rückstellung
Verteiler anschlussfertig verdrahtet
