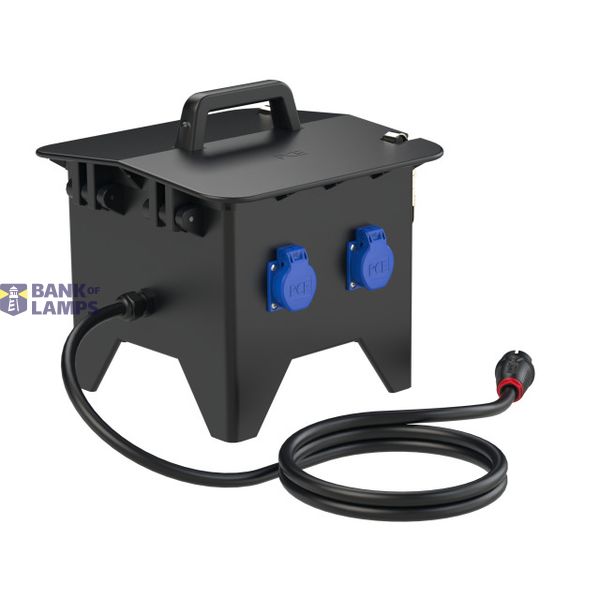

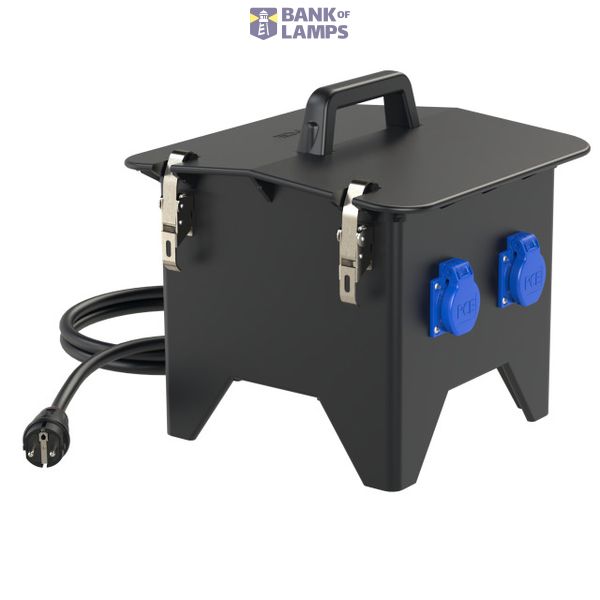

Distribution box rubber mobile Spitz BV 4xSSD elek.Zähler 2m3G2.5SSt Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile Spitz BV 4xSSD electronic counter 2m3G2.5SSt Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399082559

Other Technical data

Colour	Black
Width	320 mm
Height	320 mm
Depth	320 mm
Number of socket outlets with protective contact (type F)	4
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	4
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

Mobiler Vollgummiverteiler Modell SPITZ IP54 320x320x320
mit Absperrvorrichtung
2m Kabel H07RN-F 3G2,5mm2 sw. mit VG-Stecker 16A 2p+PE 230V
4xSK-Steckdose 16A 250V IP54 abgesichert ü. 4xLS 16A 1p C
1xFI 25A/2/0.03A (TYP A 25AT) über alle Ausgänge
1xWechstromzähler DIGI 32A 230V 1p 1TE -25°..55°C 1,5-6² FINDER ü.a.Abgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler betriebsfertig angeschlossen
