Distribution box rubber mobile SPITZ BV 3x32/5 4xSSD 2m5G10St63 H07 Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile SPITZ BV 3x32/5 4xSSD 2m5G10St63 H07 Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399117268

Other Technical data

Colour	Black
Width	320 mm
Height	320 mm
Depth	320 mm
Number of socket outlets with protective contact (type F)	4
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	3x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	5
Type of mains connection	CEE 63 A

Downloads

Product data sheet

Description

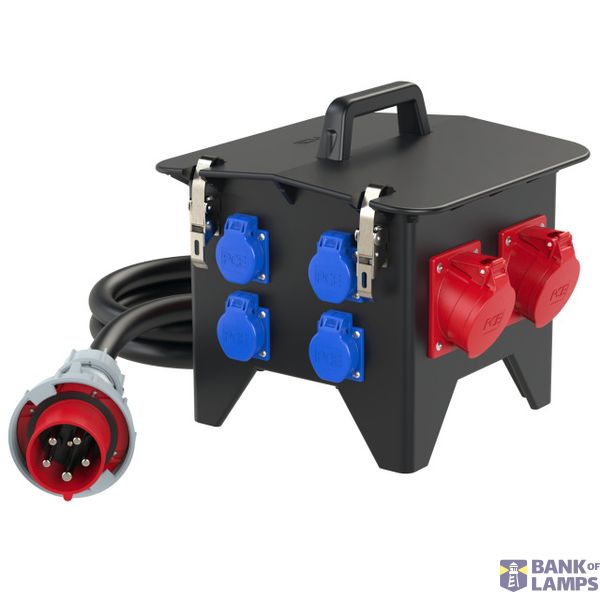

mobile solid rubber distribution box model SPITZ IP54 320x320x320
2m cable H07RN-F 5G10mm2 black with plug 63A 5p 400V
3xCEE-sockets 32A 5p 400V fused with 3xMCB`s 32A 3p C
4xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p B
1xRCD 63A/4/0.03A (TYP A 63AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
