Distribution box rubber mobile SPITZ BV 2x16/5 6xSSD 2m5G6St32 H07 Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile SPITZ BV 2x16/5 6xSSD 2m5G6St32 H07 Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399117183

Other Technical data

Colour	Black
Width	320 mm
Height	320 mm
Depth	320 mm
Number of socket outlets with protective contact (type F)	6
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	4
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

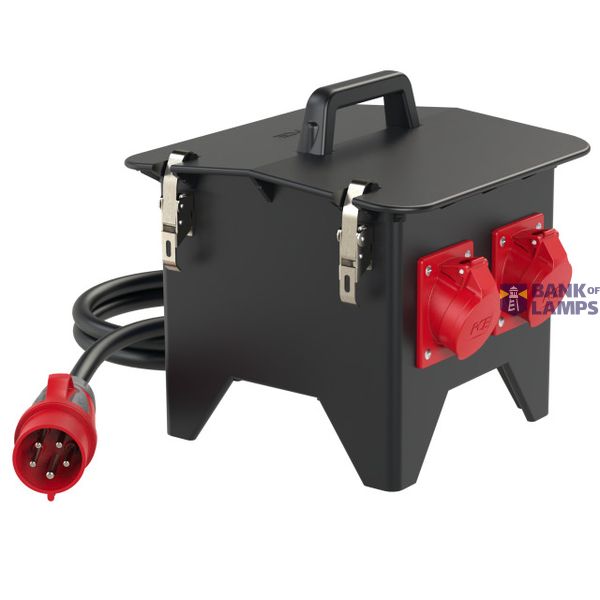

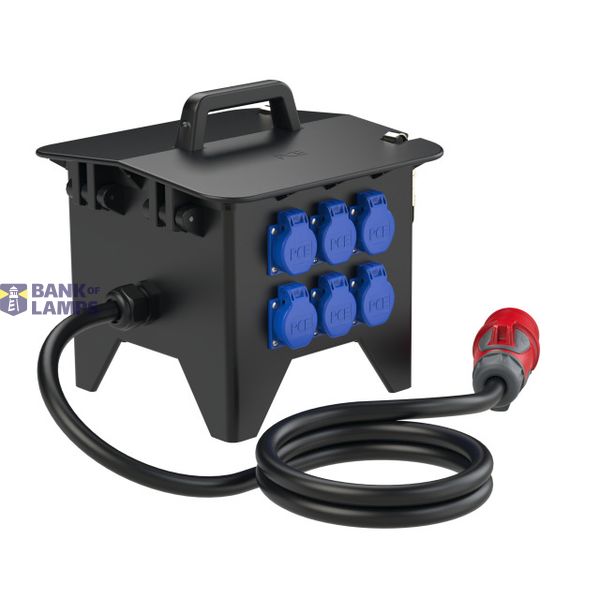

Mobile solid rubber distribution box modell SPITZ IP54 320x320x320
2m cable H07RN-F 5G6mm² black with plug 32A 5p 400V
2xCEE-socket 16A 5p 400V protected with 1xMCB 16A 3p C
6xsocket 16A 250V IP54 protected with 3xMCB 16A 1p B
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB and RCD are made by Eation ÖVE/VDE
distribution box is ready wired for using
