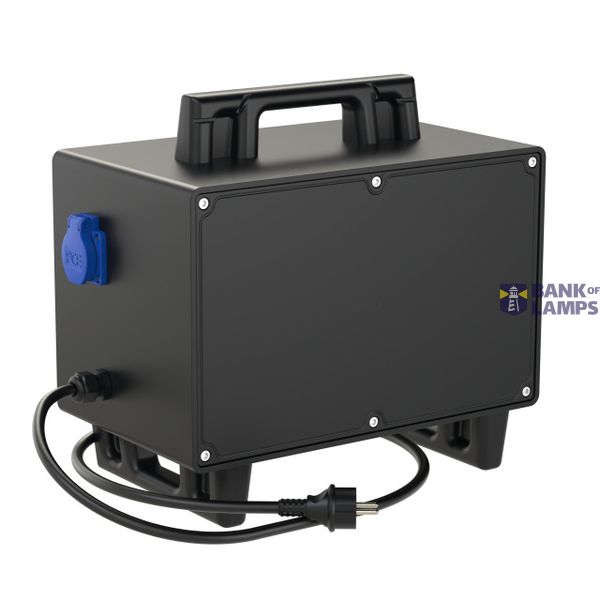

Distribution box rubber mobile Schrems MV SSD 2.5kVA 230/230 3m2x2.5 K2

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile Schrems MV SSD 2.5kVA 230/230 3m2x2.5 K2
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399020001

Other Technical data

Colour	Black
Width	400 mm
Height	255 mm
Depth	240 mm
Number of socket outlets with protective contact (type F)	1
Cable length	3 m
Protection	Other
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Other

Downloads

Product data sheet

Description

Mobiler Vollgummiverteiler Modell SCHREMS IP44/54 255x400x300
mit 1x Tragegriff oben und 2x Stellfüße unten (stapelbar)
3m Gerätel. H07RN-F 2G2,5mm2 m.VG-Kont.-Stecker 16A 2p 230V
1xSK-Steckdose 16A 250V IP54 abgesichert d. Vorsicherung Zuleitung
1xÜbertemperatursicherung 70 Grad C manuelle Rückstellung
1xTrenntrafo 2.5kVA 230/230V prim.abges.ü. 1x therm. Schutzschalter 11A 1p
1xEinschaltstrombegrenzer 25A 2Ohm
Verteiler betriebsfertig angeschlossen
