Distribution box rubber mobile SCHREMS BV 63/5 3x32/5 2x16/5 2xSSD Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile SCHREMS BV 63/5 3x32/5 2x16/5 2xSSD Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399286728

Other Technical data

Colour	Black
Width	400 mm
Height	255 mm
Depth	300 mm
Number of socket outlets with protective contact (type F)	2
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	3x32A5p400V
CEE socket outlet 63 A	1x63A5p400V
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	7
Type of mains connection	CEE 63 A

Downloads

Product data sheet

Description

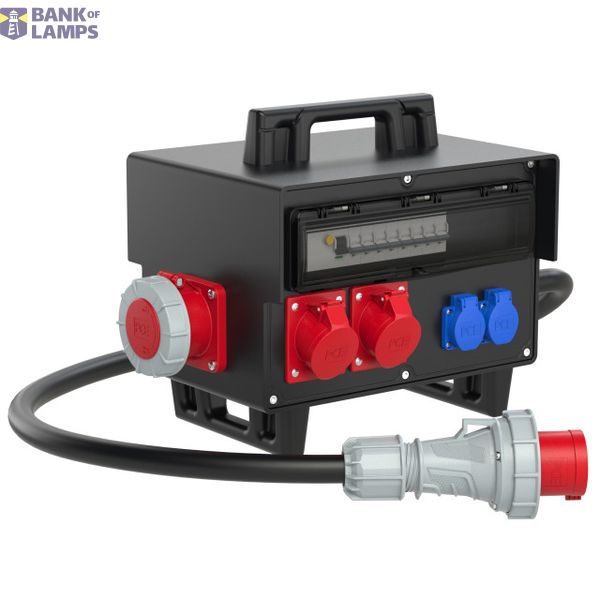

Mobile solid rubber distribution box - series SCHREMS IP54 255x400x300
with carrying handle on top and feet on the bottom (stackable)
2m cable H07RN-F 5G16mm2 black with plug 63A 5p 400V
1xCEE-socket 63A 5p 400V protected with pre-fuse of supply line / not over the RCD!
2x safety socket DIN49440 16A 250V IP54 protected with 2xMCBs 16A 1p C
3xCEE-socket 32A 5p 400V protected with 3xMCBs 32A 3p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 32A outlets
2xCEE-socket 16A 5p 400V protected with 2xMCBs 16A 3p C
1xRCD 63A/4/0.03A (TYP A 63AT) over all 16A outlets
MCB and RCD are made by Eaton ÖVE / VDE
distribution box is ready wired for using
