Distribution box rubber mobile SCHREMS BV 32/5 2x16/5 6xSSD WGS Zä Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile SCHREMS BV 32/5 2x16/5 6xSSD WGS Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399976261

Other Technical data

Colour	Black
Width	400 mm
Height	255 mm
Depth	300 mm
Number of socket outlets with protective contact (type F)	6
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Built-up plug
Number of miniature circuit breakers	4
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

sold rubber distribution box SCHREMS IP54 255x400x300
1xCEE-plug 32A 5p 400V
1xCEE-socket 32A 5p 400V protected with pre-fuse of supply line
2xCEE-socket 16A 5p 400V fused with 1xMCB 16A 3p C

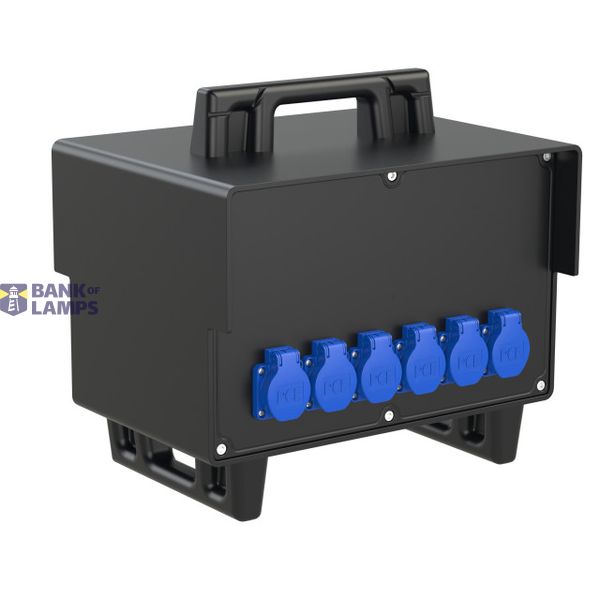

6xSchuko-sockets 16A 250V IP54 fused with 3xMCB 16A 1p B
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
1xThree-phase meter DIGI MID 65A 400V 3p 4TE -25°..55°C 1,5-16²
MCB and RCD made by EATON ÖVE / VDE
distribution box is ready wired for using
