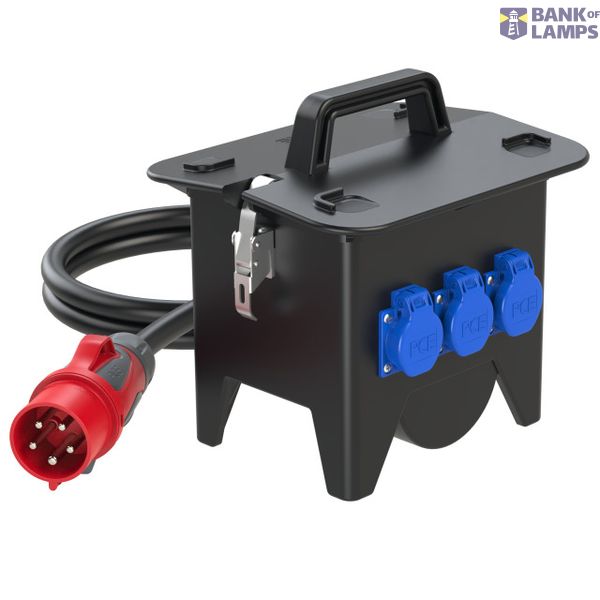

Distribution box rubber mobile RIED MV 6xSSD 2m5G6St32/5 Ea IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile RIED MV 6xSSD 2m5G6St32/5 Ea IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768972

Other Technical data

Colour	Black
Width	235 mm
Height	280 mm
Depth	285 mm
Number of socket outlets with protective contact (type F)	6
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	None
Power supply/connection possibility	Feeder cable with plug
Number of miniature circuit breakers	6
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

mobile solid rubber distribution box model RIED IP54 285x235x281
2m cable H07RN-F 5G6mm2 black with plug 32A 5p 400V
6xSK-sockets 16A 250V IP54 fused with 6xMCB`s 16A 1p C
MCB`s are Eaton ÖVE / VDE branded
distribution box is ready wired for using
Label: "Additional protection required by RCCB on supply side is required"
