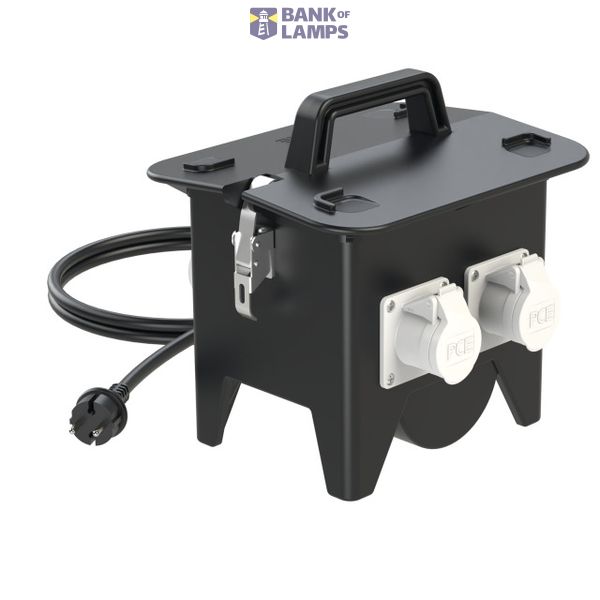

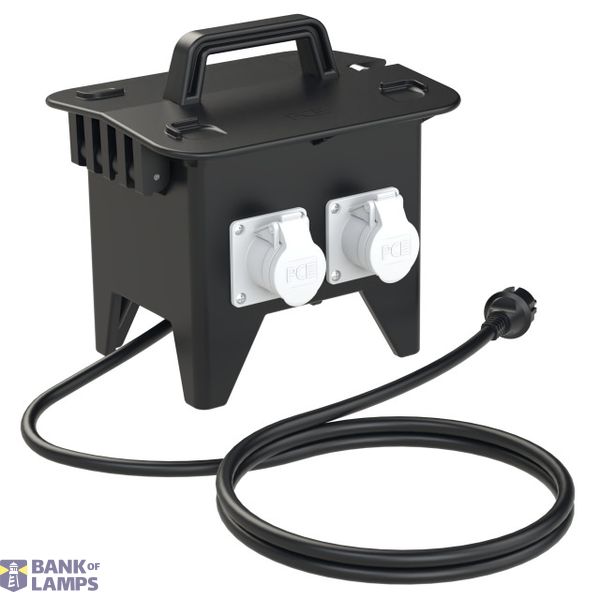

Distribution box rubber mobile RIED MV 4x16/2 0.5kVA 230/42 3m2G1.5 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile RIED MV 4x16/2 0.5kVA 230/42 3m2G1.5 IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399794186

Other Technical data

Colour	Black
Width	235 mm
Height	280 mm
Depth	285 mm
Cable length	3 m
Protection	Other
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	4x16A2p42V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

Mobiler Vollgummiverteiler Modell RIED IP44 285x235x281
3m Gerätel. H07RN-F 2G1.5mm2 m.VG-Kont.-Stecker 16A 2p 230V
4xCEE-Steckdose 16A 2p 42V abgesichert ü. Sicherung 16A (6x32mm)
1xKLSP-Trafo 0,5kVA 230/42V prim. abges.ü.1xThermosch.2A 1p
1xÜbertemperatursicherung 70 Grad C manuelle Rückstellung
Verteiler betriebsfertig angeschlossen
