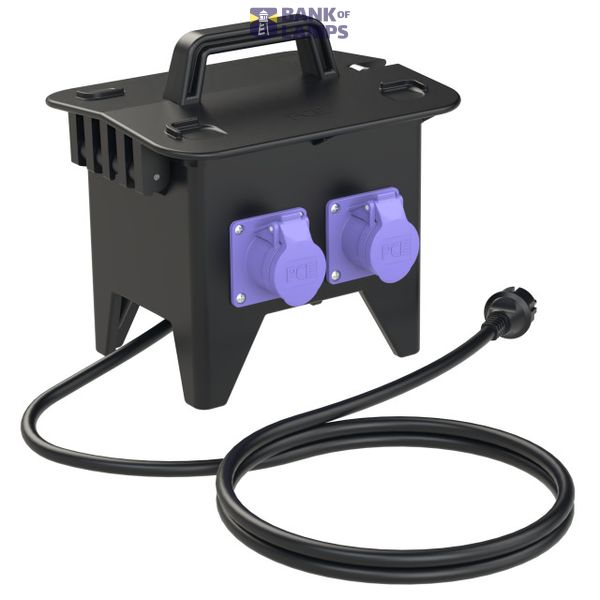

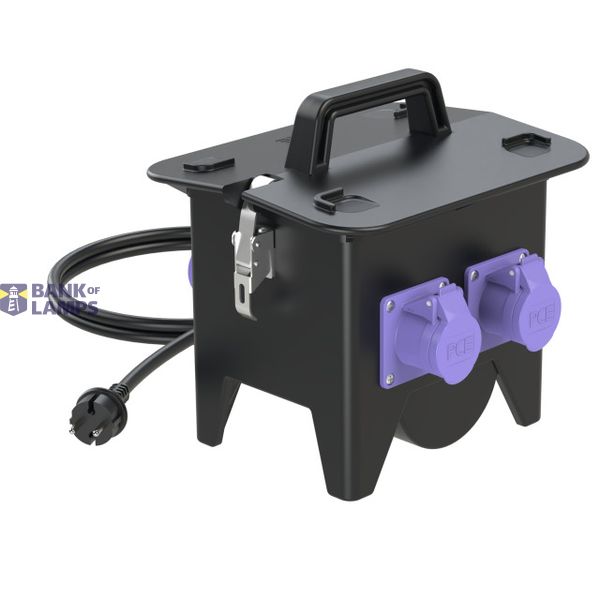

Distribution box rubber mobile RIED MV 4x16/2 0.5kVA 230/24 3m2G1.5 IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile RIED MV 4x16/2 0.5kVA 230/24 3m2G1.5 IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399793905

Other Technical data

Colour	Black
Width	235 mm
Height	280 mm
Depth	285 mm
Cable length	3 m
Protection	Other
Housing material	Rubber
Earth leakage switch	None
CEE socket outlet 16 A	4x16A2p24V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	Protective contact (type F)

Downloads

Product data sheet

Description

Solid rubber distr. box - series RIED IP44 285x235x281
3m cable H07RN-F 2G1.5mm2 w. rubber plug 16A 2p 230V
4xCEE-socket16A 2p 24V with 16A fuse
1xlow voltage transformer 0,5kVA 230/24V primary fused with thermo switch 2A 1p
1x overheating fuse 70 degree C with manual reset
Distribution box ready wired for connection
