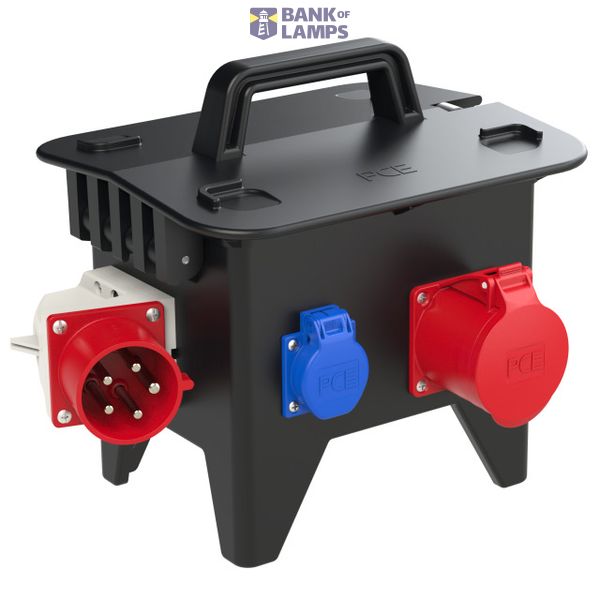

Distribution box rubber mobile RIED BV 32/5 2x16/5 3xSSD WGS32/5 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile RIED BV 32/5 2x16/5 3xSSD WGS32/5 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768965

Other Technical data

Colour	Black
Width	235 mm
Height	280 mm
Depth	285 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Built-up plug
Number of miniature circuit breakers	4
Type of mains connection	CEE 32 A

Downloads

Product data sheet

Description

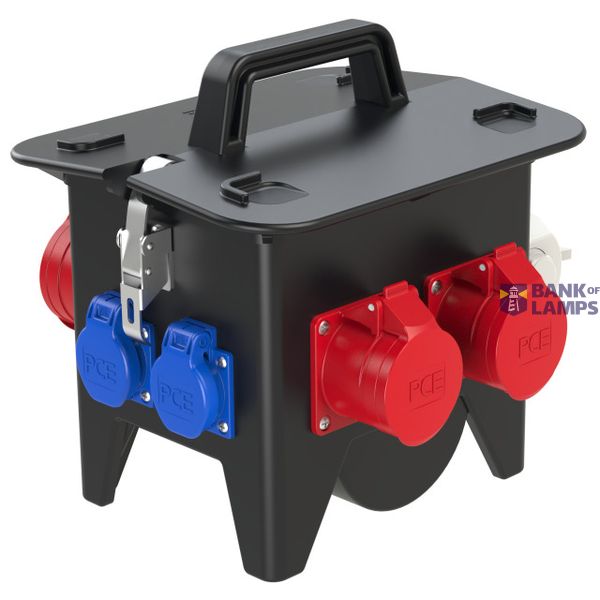

Mobile solid rubber distribution box series RIED IP44 285x235x281
1xCEE-wall plug 32A 5p 400V
1xCEE-socket 32A 5p 400V unprotected
2xCEE-socket 16A 5p 400V protected with 1xMCB 16A 3p C
3x saftey socket DIN49440 16A 250V IP54 protected with 3xMCBs 16A 1p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCBs and RCD made by PCE VDE
distribution box is ready wired for using
