Distribution box rubber mobile RIED BV 2x16/5 4xSSD WGS16/5 Ea IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box rubber mobile RIED BV 2x16/5 4xSSD WGS16/5 Ea IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399768880

Other Technical data

Colour	Black
Width	235 mm
Height	280 mm
Depth	285 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Rubber
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	Built-up plug
Number of miniature circuit breakers	2
Type of mains connection	CEE 16 A

Downloads

Product data sheet

Description

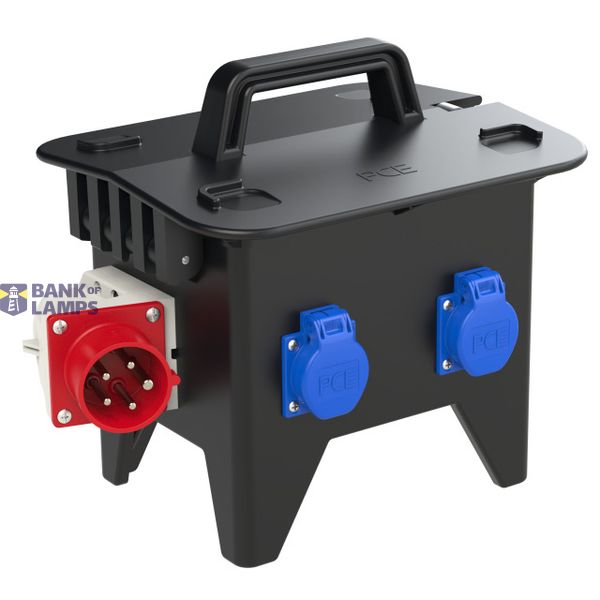

mobile solid rubber distribution box model l RIED IP44 285x235x281
1xCEE-plug 16A 5p 400V
2xCEE-sockets 16A 5p 400V unprotected
4xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p C
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`s and RCD are PCE VDE branded
distribution box is ready wired for using
