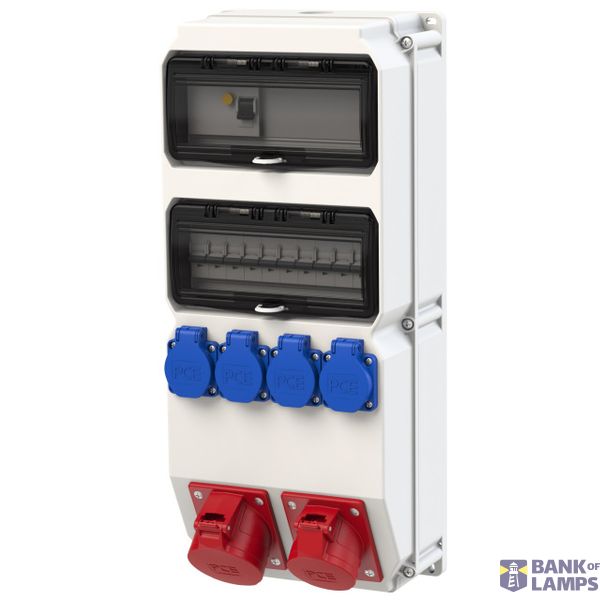

Distribution box plastic wall mounted STROBL BV 32/5 16/5 4xSSD M32ÖoBVu H IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted STROBL BV 32/5 16/5 4xSSD M32ÖoBVu H IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975462

Other Technical data

Colour	Grey
Width	222 mm
Height	520 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	6

Downloads

Product data sheet

Description

Kunstst.-Wandverteiler Modell STROBL IP54 520x222x140 2x10TE
1xBohrung M32 oben, 1xBlindverschraubung M32 unten
1xCEE-Steckdose 32A 5p 400V abgesichert ü. 1xLS 32A 3p C
1xCEE-Steckdose 16A 5p 400V abgesichert ü. 1xLS 16A 3p C
4xSK-Steckdose 16A 250V IP54 abgesichert ü. 4xLS 16A 1p C
1xFI 63A/4/0.03A (TYP A 40AT) über alle Ausgänge
Leitungsschutzschalter und FI Fabrikat Eaton ÖVE / VDE
Verteiler auf HKL-Klemme (max.5x25qmm/5x16qmmYF!) verdrahtet
