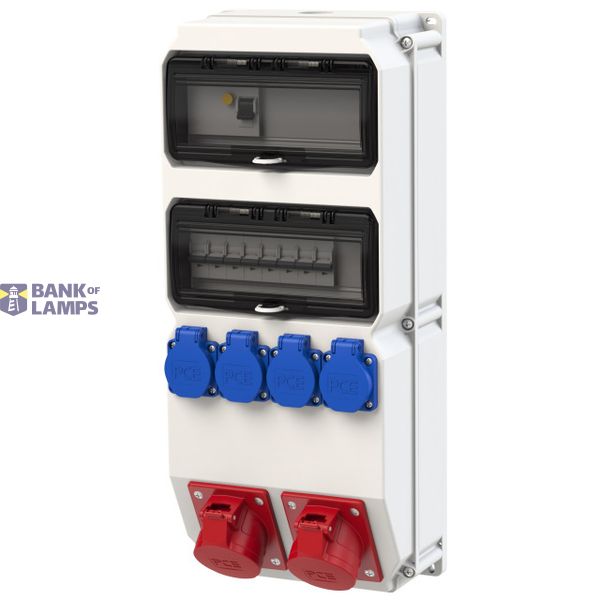

Distribution box plastic wall mounted STROBL BV 2x16/5 4xSSD M32ÖoBVu HKL IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Distribution box plastic wall mounted STROBL BV 2x16/5 4xSSD M32ÖoBVu HKL IP54
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Wall mounting
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399975400

Other Technical data

Colour	Grey
Width	222 mm
Height	520 mm
Depth	140 mm
Number of socket outlets with protective contact (type F)	4
Protection	Overcurrent switch
Housing material	Plastic
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 16 A	2x16A5p400V
Power supply/connection possibility	2 cables (ring line)
Number of miniature circuit breakers	4

Downloads

Product data sheet

Description

thermoplastic wall mounted distribution box model STROBL IP54 520x222x140 2x10TE
1x drilling hole M32 on top, 1x blind cable gland M32 from bottom
2xCEE-sockets 16A 5p 400V fused with 2xMCB`s 16A 3p C
4xSK-sockets 16A 250V IP54 fused with 2xMCB`s 16A 1p B
1xRCD 40A/4/0.03A (TYP A 25AT) over all outlets
MCB`and RCD are Eaton ÖVE / VDE branded
distribution box is wired on terminals up to (max.5x25qmm/5x16qmm flexible wire!)
